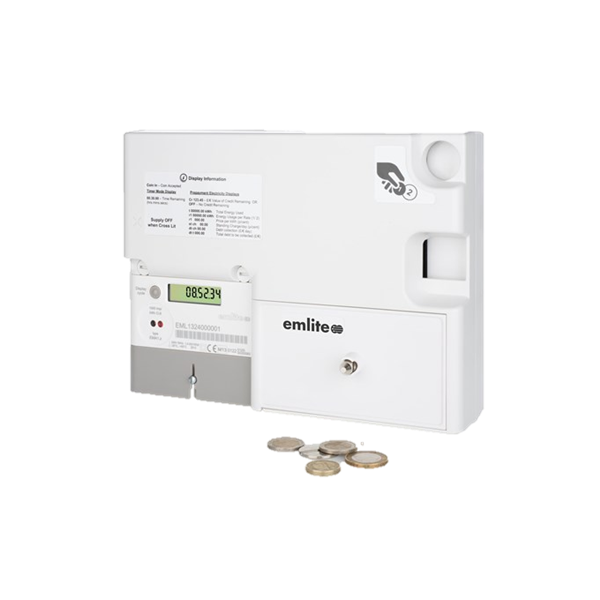

The emlite coin prepayment meter provides a compact and easy to use solution for many prepaid metering applications. Fully approved in accordance with the Measuring Instruments Directive (MID), this highly functional meter may be used for resale of electricity or services.
Features -
Fully MID approved
|
Electrical |
Voltage |
Nominal voltage |
220V—240V |
|
|
|
Maximum |
276V |
|
|
|
Voltage withstand |
415V (maximum 6 hours) |
|
|
Frequency |
Nominal frequency |
50Hz |
|
|
|
Frequency variation |
± 5% |
|
|
Current |
Current range |
20—100 AMP |
|
|
|
Maximum (Imax) |
100A (140% overcurrent) |
|
Metrology |
Accuracy |
Active energy |
Class B (1%), to EN 50470 1-3 |
The meter meets the essential requirements of the Measuring Instruments Directive
(MID) 2004/22/EC
|
Environmental |
Temperature Range |
-25°C to +55°C |
|
|
Ingress protection |
IP51, to BS EN 60529 |
Meters are intended for installation in a in a class E2 electromagnetic environment and
Class M1 Mechanical Environment according to 2004/22/EC Directive
|
Physical |
Terminal arrangement |
BS 7856 |
|
|
Main Terminal size |
8.2 mm diameter |
|
Dimensions |
Terminal Construction
280H×208W×95D mm |
Solid brass |
| Model | PREPAYMENT |
|---|---|
| Manufacturer | Emlite |
| In Depth | Ideal for landlords, housing associating and holiday lets this fully new coin prepayment meter is one of the worlds most compact and easy to use. Being MID approved this new meter meets all relevant OFGEM and EU legislation in relation to the resale of electricity. In electricity prepayment mode the meter provides options for one or two tariff operation, separately programmable standing charge and debt collection facilities. In timer mode the operation can be programmed in 1 minute intervals to a maximum of 99hrs 99 minutes making it ideal for timer controlled services. A fully electronic validator is used for coin acceptance ensuring no loss of revenue through the use of foreign or fake coins. The validator can also be factory programmed for use with various tokens where a higher risk of theft is present. High quality solid brass cable terminals are used allowing 100 Amp operation and to aid electrical installation. |
| Length | 30 |
| Height | 10 |
| Bredth | 22 |
| HS Tariff Code | 9030310000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Individual |
