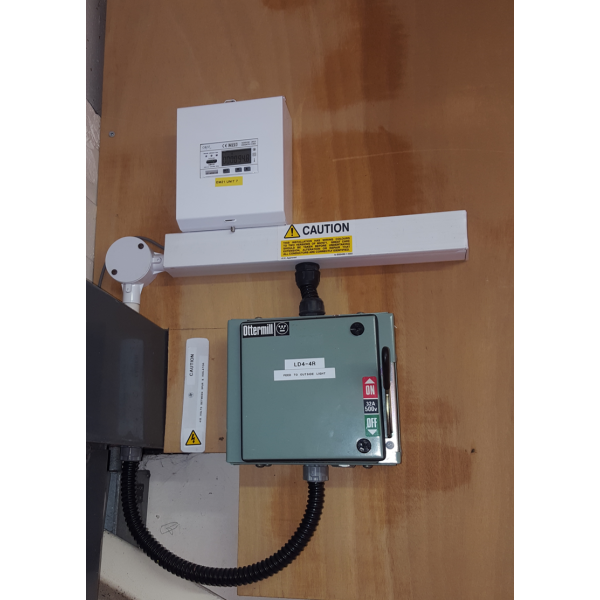

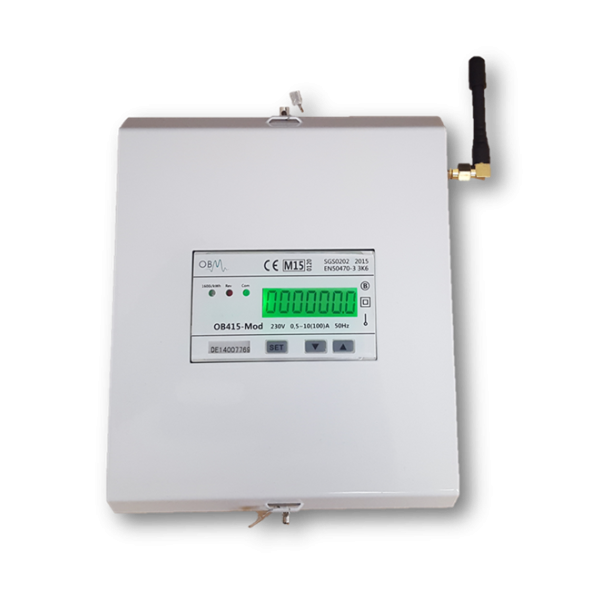

OB415-Mod series is a fully MID certified single phase Active energy meter with pulse, backlit display. Complete with quad band gsm/gprs gateway, network roaming sim, 12 month data - service in Powder Coated Steel Enclosure.
Single phase direct 100A metering - 4 DIN modules, Standard DIN rail Format (DIN43880) High Accuracy - EN50470 Class 1.0, MID Certified Annex B & D Isolated pulse output Modbus RTU Large clear backlit display Benefits and Main Features > MID Certified Annex B &D > Single phase metering > Standard DIN rail Format (DIN43880) > CI.1 Accuracy (ENS0470) > Energy consumption LED, reverse current LED, > Communication LED > Isolated pulse output and IR (DIN43864) > LCD display, 6 integers 1 decimal > Clear backlit display > Internal transformer > Direct metering up to 100A > Memory back-up (EEprom) > 4 DIN modules > CE approval Technical data Voltage(v) 220/230V Operational voltage 70%-130%Un - Iref 10A -Itr 1A -Imax 100A -Imin 0.5A -Ist 40mA Power consumption of current circuits(VA) < 0.01 Power consumption of voltage circuits(W) < 1.3W General data Frequency (Hz) 50/60 Memory back-up EEprom Environment resistance to heat and fire Terminal 960℃ Cover 650℃ upper ABS+PC lower ABS+PC Pulse output Pulse width(ms) 80 Pulse constant(imp/kWh) 1600 Performance criteria Operating humidity ≤ 75% Storage humidity ≤ 95% Limit range of operating temperature -25°C - +55°C(3K6) Limit range for storage temperature -25°C - +55°C(1K4) Humidity 75% yearly average,95% on 30 days/year International standard EN50470-3 &IEC62053-21 Accuracy class CI.1 Protection against penetration of dust and water IP51
| Manufacturer | Owen Brothers |
|---|---|
| In Depth | Voltage(v) 220/230V Operational voltage 70%-130%Un - Iref 10A -Itr 1A -Imax 100A -Imin 0.5A -Ist 40mA Power consumption of current circuits(VA) < 0.01 Power consumption of voltage circuits(W) < 1.3W General data Frequency (Hz) 50/60 Memory back-up EEprom Environment resistance to heat and fire Terminal 960℃ Cover 650℃ upper ABS+PC lower ABS+PC Pulse output Pulse width(ms) 80 Pulse constant(imp/kWh) 1600 2 Performance criteria Operating humidity ≤ 75% Storage humidity ≤ 95% Limit range of operating temperature -25°C - +55°C(3K6) Limit range for storage temperature -25°C - +55°C(1K4) Humidity 75% yearly average,95% on 30 days/year International standard EN50470-3 &IEC62053-21 Accuracy class CI.1 Protection against penetration of dust and water IP51 |
