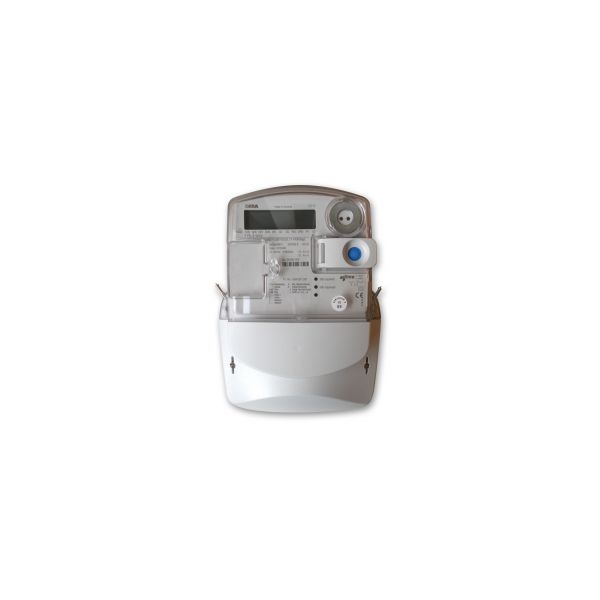

The ME375 is targeted at deregulated energy markets and enables provision of an AMR and prepayment service. It is a three phase meter designed for use in a residential application. The meter incorporates a fully integrated GSM/GPRS modem that can be exchanged with integrated RS485 communications interface for block installations. The meter is approved according to IEC 62052-11, IEC 62053-21 and IS0 9001.
Technical Specification
CT Operated / Direct Connected (In Line)
Three Phase Networks
MID Approved
Import/Export Energy
Tariff control input
Small size modern design
Intergrated GSM/GPRS Modem
Cost Effective
Accuracy class: 2 or 1
Voltage range: 1.15 Un
Max. current: 6A (5A ct operated)
Reference voltage: 3x230/400V
Reference frequency: 50/60Hz
Operating temp. range: -25 to+60° C
Extended temp. range:-40 to +70° C
Storage temperature: -40 to+85° C
Self-consumption current 0.5VA
Self-consumption Voltage 2W / 10VA
Short-circuit current: 30 Imax
