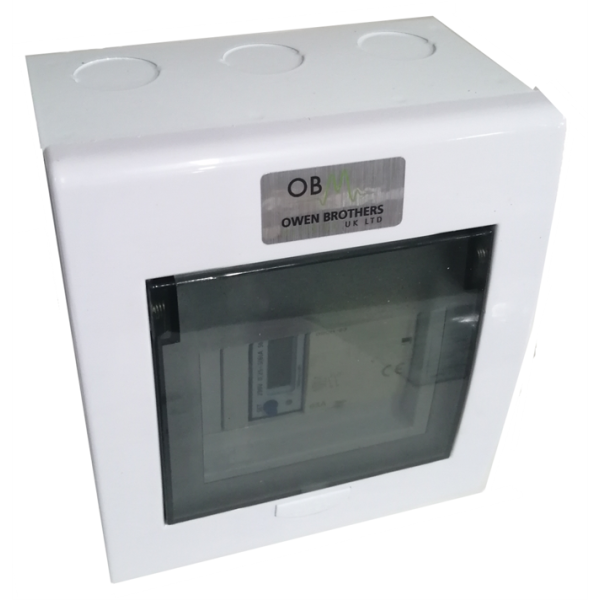

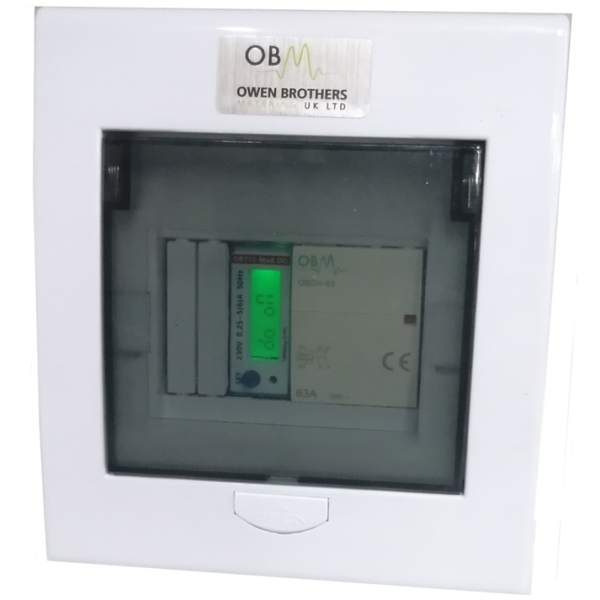

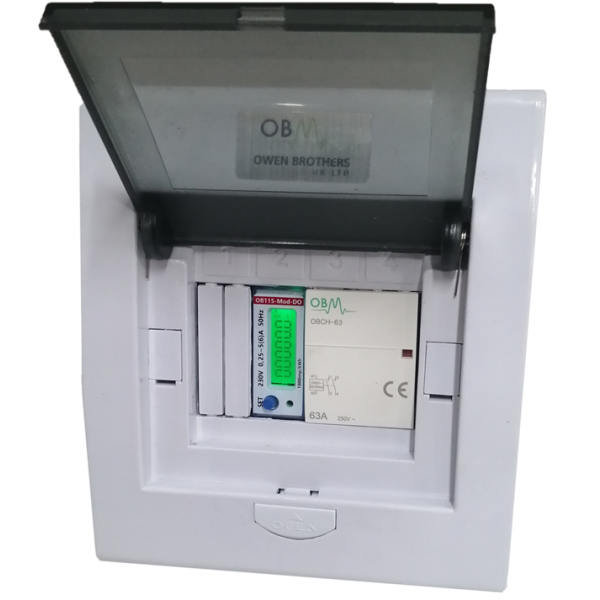

OB115-MOD-DO EV Kit

The Ideal Meter Kit for EV Charging.

• MID Certified Energy Meter.
• RS485 MODBUS Communication.
• Live Readings:
  • Volts, Amps, Power Factor, Frequency, Active Power, Reactive Power & Apparent Power, DO-EV Status.
• Cumulative Readings:
  • Import Active Energy, Import Reactive Energy, Export Active Energy, Export Reactive Energy, Total Active Energy.
• Clear Backlit LCD Screen
• Auto Scrolling Display - Display Sequences and number of items shown can be set via RS485.
• Button Press Display – Key Press Display Sequences and number of items shown can be set via RS485.
• Comes with 100/5 Split Core Current Transformer.
• Includes Contactor.

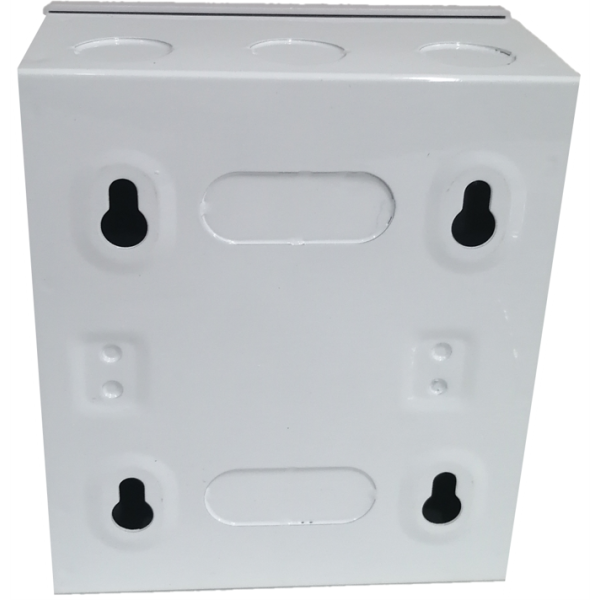

• Steel Enclosure with Plastic Front.

Prevent Main Fuse being Blown.

• Only Allows Charger to be Powered if Sufficient Power Capacity Available.
• Auto Shut Off Power to EV Charger if Mains Power Reaches Max Amps Set Value.
• Auto Reconnect Power to EV Charger if Main Power Below Low Amps Set Value.

 Suitable for Load Shedding.
