Installation Equipment

Terminal Test Blocks can be used for testing a wide range of electrical equipment including integrating meters and protective relays, without disturbing the normal load circuit. ~ Terminal arrangements can be adapted to suit many applications ~ Front and back connected types ~ All terminals and screws are plated brass ~ Molded insulation barriers between sets of terminals ~ Link facilities for testing purposes.

Items 1 to 20 of 30 total

Page:
  1. 1
  2. 2

List  Grid

  1. Test Terminal Block Type 22988 Front Connected

    Test Terminal Block Type 22988 Front Connected

    Terminal Test Blocks can be used for testing a wide range of electrical equipment including intergrating meters and protective relays, without disturbing the normal load circuit. Terminal arrangements can be adapted to suit many applications eatures Terminal arrangements cover a wide range of applications Front and back connected types All terminals and screws are plated brass Moulded insulation barriers between sets of terminals Link facilities for testing purposes TEST TERMINAL BLOCKS c/w 4mm safety test sockets Front connected type with: standard black cover ; stock no 22988 dwg no 4731 IEEE Standard Requirements for Instrument Transformers C57.13, 17th edition. Learn More
    £45.00

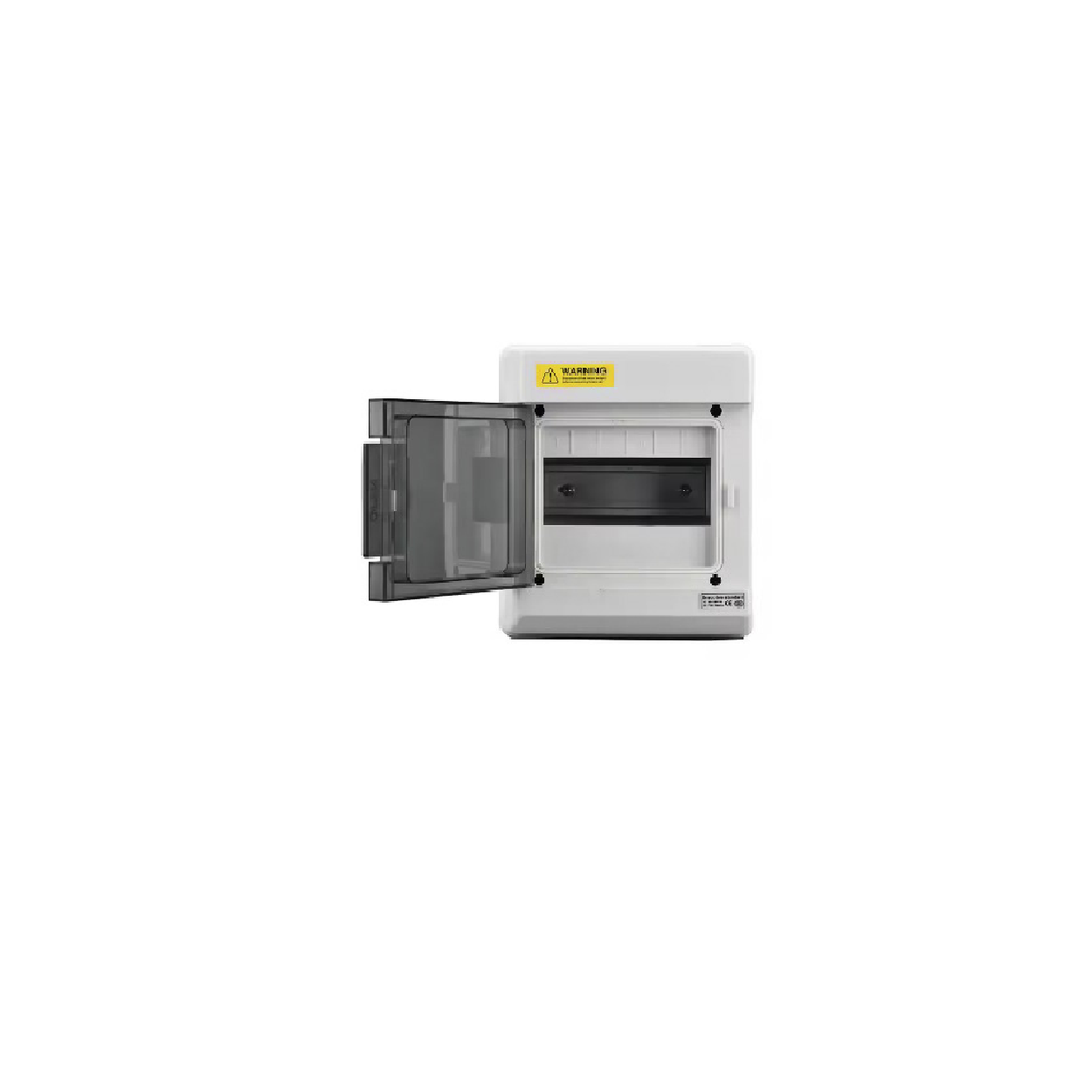

  2. 5 DIN Module IP65 Enclosure

    5 DIN Module IP65 Enclosure

    AK 5 Metering board 125 x 200 x 122 mm

    Learn More

    Regular Price: £26.99

    Special Price £19.99

  3. 9 DIN Module IP65 Enclosure

    9 DIN Module IP65 Enclosure

    AK 9 Metering board
    200 x 200 x 122 mm

    Metering board, 9 modules, 6 elastic entries on top, masking and labelling strips, insulating seals, additional double-membrane seals.

    Learn More
    £29.59
  4. 12 DIN Module IP65 Enclosure

    12 DIN Module IP65 Enclosure



    AK 12



    Metering board
    250 x 200 x 122 mm



    Metring board, 12 modules, , 8 elastic entries on top, masking and labelling strips, insulating seals, additional double-membrane seals



    Learn More

    Regular Price: £34.99

    Special Price £29.49

  5. 14 DIN Module IP65 Enclosure

    14 DIN Module IP65 Enclosure

    AK 14

    Metering board

    300 x 300 x 142 mm

    Metering board, 1 row, 14 modules, screwless PE/N terminal rails each with 3 screwable clamping points, 2.5 - 16 mm², 14 screwless clamping points, 1.5 - 4 mm², elastic entries on top, with cable covering, masking and labelling strips, additional double-membrane seals and other accessories

    Learn More
    £69.99
  6. 24 DIN Module IP65 Enclosure

    24 DIN Module IP65 Enclosure

    AK 24

    Metering board
    250 x 370 x 122 mm

    Metering board, 24 modules, , 8 elastic entries on top, masking and labelling strips, insulating seals, additional double-membrane seals



    Learn More
    £78.99
  7. 28 DIN Module IP65 Enclosure

    28 DIN Module IP65 Enclosure



    AKi 28



    Metering board
    300 x 450 x 142 mm



    Metering board - Industrial Quality - 2 row, 28 modules, 150 mm rail spacing, screwless PE/N terminal rails each with 6 screwable clamping points, 2.5 - 16 mm², 21 / 2 x 14 screwless clamping points 1.5 mm² - 4 mm², elastic entries on top, with cable covering, masking and labelling strips, additional double-membrane seals and other accessories.



    Learn More
    £129.99
  8. 48 DIN Module IP65 Enclosure

    48 DIN Module IP65 Enclosure

    AKi 42

    Metering board
    300 x 600 x 142 mm

    Metering board - Industrial Quality -, 3 row, 42 modules, 150 mm rail spacing, screwless PE/N terminal rails each with 6 screwable clamping points, 2.5 - 16 mm², 21 / 2 x 14 screwless clamping points 1.5 mm² - 4 mm², elastic entries on top, with cable covering, masking and labelling strips, additional double-membrane seals and other accessories

    Learn More
  9. 56 DIN Module IP65 Enclosure

    56 DIN Module IP65 Enclosure

    AKi56

    Metering board

    300 x 750 x 142 mm

    Metering board - Industrial Quality -, 4 row, 56 modules, 150 mm rail spacing, screwless PE/N terminal rails each with 6 screwable clamping points, 2.5 - 16 mm², 21 / 2 x 14 screwless clamping points 1.5 mm² - 4 mm², elastic entries on top, with cable covering, masking and labelling strips, additional double-membrane seals and other accessories



    Learn More
    £189.99
  10. 70 DIN Module IP65 Enclosure

    70 DIN Module IP65 Enclosure

    AKi 70

    Metering board
    300 x 900 x 142 mm


    Metering board - Industrial Quality -, 5 row, 70 modules, 150 mm rail spacing, screwless PE/N terminal rails each with 6 screwable clamping points, 2.5 - 16 mm², 21 / 2 x 14 screwless clamping points 1.5 mm² - 4 mm², elastic entries on top, with cable covering, masking and labelling strips, additional double-membrane seals and other accessories

    Learn More
    £234.99
  11. Professional stainless steel sealing pliers (A)

    Professional stainless steel sealing pliers (A)

    These Professional high quality polished stainless steel sealing pliers are manufactured to the highest standard, perfect for lead, plastic, ferrule and copper seals. Learn More
  12. Professional stainless steel sealing pliers (B)

    Professional stainless steel sealing pliers (B)

    These Professional high quality polished stainless steel sealing pliers are manufactured to the highest standard, perfect for lead, plastic, ferrule and copper seals. Learn More
  13. IP66 Enclosure TP 2

    IP66 Enclosure TP 2

    IP66 Enclosure suitable for Single Phase & Three phase Metering 360 x 254 x 111 Learn More
  14. IP66 Enclosure TP 1

    IP66 Enclosure TP 1

    IP66 Enclosure suitable for Single Phase & Three phase DIN rail Metering Learn More

    Regular Price: £27.00

    Special Price £22.00

    Be the first to review this product

  15. IP66 Enclosure SP

    IP66 Enclosure SP

    IP66 Enclosure suitable for Single Phase Metering Learn More
  16. Rear Safety Cover

    Rear Safety Cover

    PROTECTION AROUND REAR CONNECTIONS OF A TEST TERMINAL BLOCK REAR SAFETY COVER stock no 23009 dwg no 4569 For use with a back connected test terminal block dwg 4735 stock no 22984 Available for fitting behind the panel to shield the rear electrical connections from operator contact. Learn More
  17. Insulated Boots for Test Terminal Blocks, CTs etc
  18. Test Terminal Block 22984 Back Connected

    Test Terminal Block 22984 Back Connected

    Back Connected Test Terminal Block Type 22984 IEEE Standard Requirements for Instrument Transformers C57.13, 17th edition. Drawing Number 4735 Learn More
  19. Test Terminal Block Type 22995A
  20. Type 22979 12 Way Front Connected Test Terminal Block

    Type 22979 12 Way Front Connected Test Terminal Block

    Type 22979 - Front connected 12 way, 3 sets of 4 current terminals with 3 rotary links per set. With insulated fences between the sets. Clear polycarbonate standard cover. Learn More
