Our OB115-MOD-DO meters feature a built-in switching relay suitable for: load shedding and alarms. Parameters include: frequency voltage, amps, watts, VAR, VA, power factor and more.

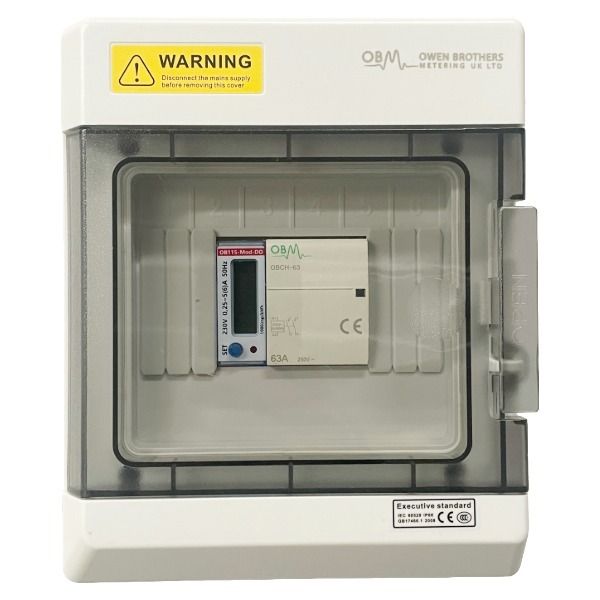

Complete in a pre-wired kit with contactor, OBCT-T24 100/5A split core CT and pre-programmed meter in IP66 enclosure.
Certification: MID Certified
Type: Single-phase high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, Modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible, programmable high/low threshold. Ideal for loadshedding and export limitation. Fully programmable. Highest supporting baud rate 115200bps. Complete with pre-wired contactor, range of contactors available.
Housing: 1 DIN Module case
Usage: Suitable for sub-billing, renewables, solar PV, auto switching, loadshedding
Current Rating: 100A
Voltage: 230/240V ± 20%
Pulse Rate: N/A
Output: N/A
Display: LCD backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh
Dimensions: 16 (W) x 20 (H) x 10 (D) cm
| Model | OB115-MOD-DO-EV-Kit |
|---|---|
| Length | 25 |
| Height | 20 |
| Bredth | 15 |
| HS Tariff Code | HS8536901000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Shared |
