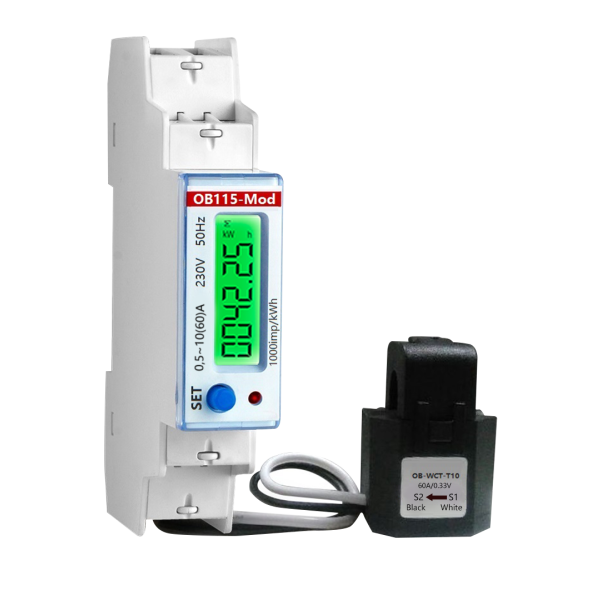

NEW! OB115-MOD 60A, 10/15M Lead, MID Approved, DIN Rail, CT Operated, RS485, Bi-Directional DIGITAL METER

PLEASE NOTE THIS METER IS 60A

Certification: MID Certified

Type: Single-phase high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/ export, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible

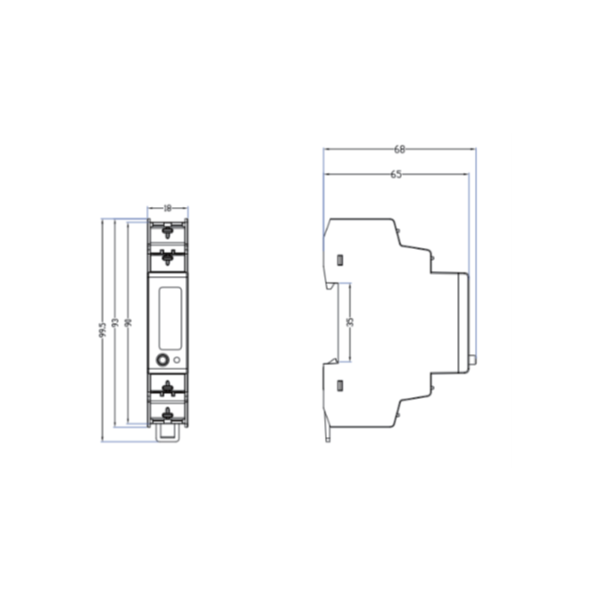

Housing: 1 DIN Module case

Usage: Suitable for sub-billing, renewables, solar PV

Current Rating: 333 mV as input 60A Split Core CT operated - Available with a 10m or 15m lead

Voltage: 230V AC 50/60Hz

Pulse Rate: 1000 imp/kWh (2nd pulse rate configurable)

Output: Isolated pulsed output

Display: LCD backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh
