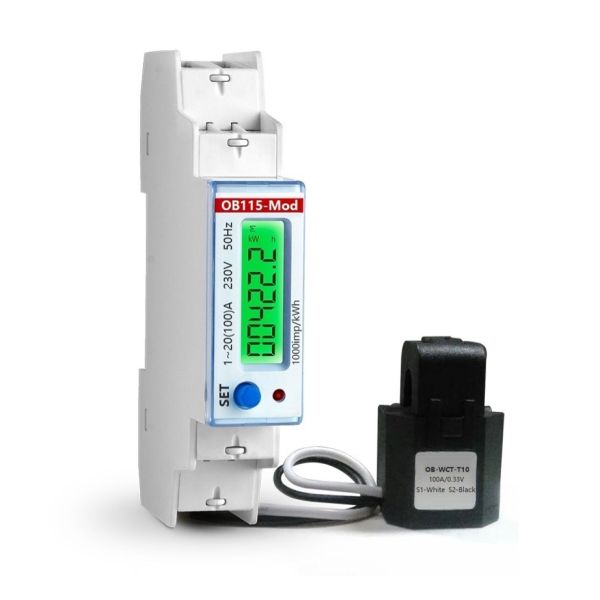

OB115-MOD-V2 100A, Mid Approved, DIN Rail, CT Operated, RS485, Bi-Directional DIGITAL METER

Certification: MID Certified

Type: SDM120 & SDM230 Eastron Modbus Register Map. Single-phase high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible

Housing: 1 DIN Module case

Usage: Suitable for sub-billing, renewables, solar PV

Current Rating: 330 mV as input 100A CT operated (split or solid)

Voltage: 230V AC 50/60Hz

Pulse Rate: 1000 imp/kWh (2nd pulse rate configurable)

Output: Isolated pulsed output

Display: LCD backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh
