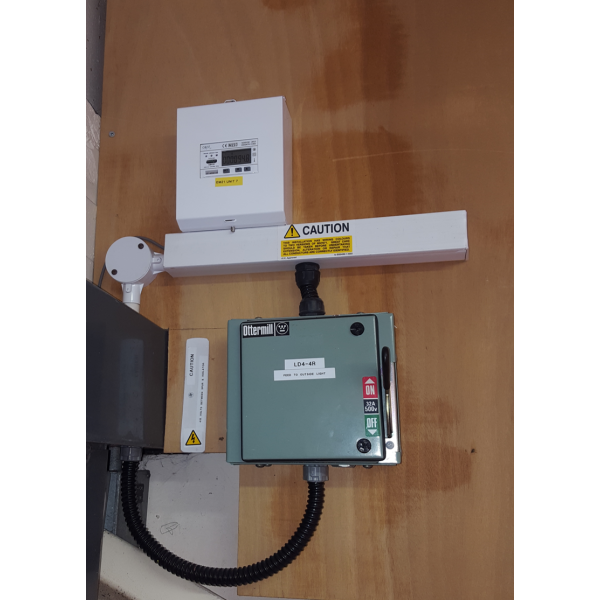

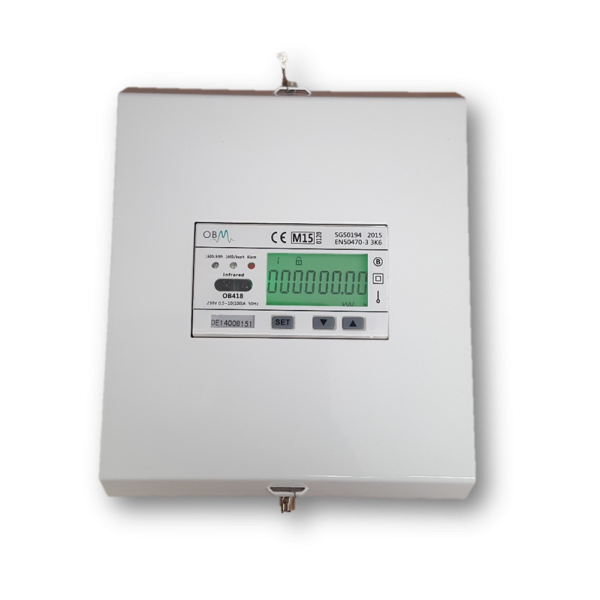

100A, MID certified single phase direct connected meter in a steel powder coated enclosure.
Certification: MID Certified
Type: Single-phase high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU, Bi-directional, import/export, set up to 4 tariffs, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible
Housing: 4 DIN module case
Usage: Suitable for sub-billing, renewables, solar PV
Current Rating: 100A Direct connected
Voltage: 230/240V ± 20%
Pulse Rate: 1000 imp/kWh
Output: Isolated pulsed output
Display: LCD Backlit display
DIMENSIONS: 7 (W) x 16.8 (H) x 7.5 (D) cm
| Model | OB418 100 AMP Multi-function Meter in Steel Enclosure |
|---|---|
| Length | 51 |
| Height | 37 |
| Bredth | 31 |
| HS Tariff Code | HS9030310000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Individual |
