Type 22985 Back Connected Test Terminal Block (11–32mm and 2–60mm studs)

Terminal Test Blocks can be used for testing a wide range of electrical equipment including intergrating meters and protective relays, without disturbing the normal load circuit. Terminal arrangements can be adapted to suit many applications eatures. Terminal arrangements cover a wide range of applications. All terminals and screws are plated brass. Moulded insulation barriers between sets of terminals.

• Type 22985 / Drawing Number 4735A

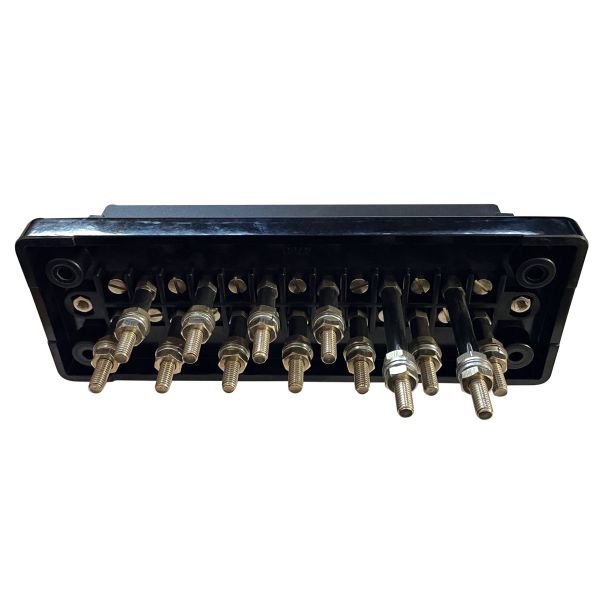

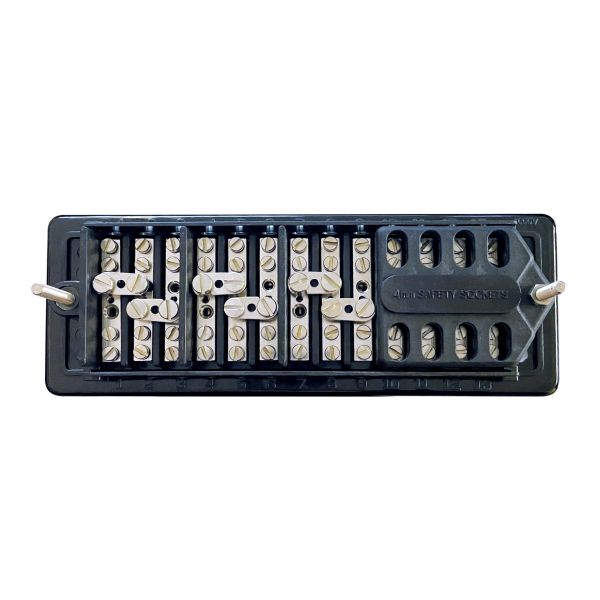

• Back Connected Test Terminal Block With Clear Polycarbonate Cover
• Cover for 4mm sockets fitted as standard.
• 11 Short studs, 2 long studs
• Rear safety cover available (Part Ref: 23009).
• Overall size: 218 (L) x 80 (W) x 60 (D) mm
