OB737CT-AK14-IP65-TTB MID  CT Meter Kit IEEE C57.13

OB737CT-AK14-IP65-TTB MID CT Meter Kit IEEE C57.13

OB737CT-AK14-IP65-TTB MID CT Meter Kit IEEE C57.13

SGS0130-Owen-Brothers-OB737Measuring Instruments Directive (MID 2004/22/EC)

Owen Brothers Metering can supply any DIN-Rail or Panel Mounted meter within our range in quality sealable metering panels also known as Meter Management Units or MMU’s that provide quick, easy and safe installation of CT operated devices.

All products allow for data collection and include pulsed output & Modbus as standard with GSM/GPRS & Ethernet TCP/IP Options.

  • Supplied pre-wired with cable entry glands & convenient knockouts.
  • Connections are simple and clearly labelled.
  • Built in phase rotation, wrong phase sequence alarm.
  • Ingress Protection - Minimum IP65
  • Includes CT Test Terminal Block IEEE C57.13

OB737CT-TK-IP65-TTB (Test Terminal Block with CT shorting links & disconnects)

Fully MID Approved Annex B & D - suitable for export of energy to the grid, industrial/commercial billing etc.

Datasheet

Three phase CT metering - 7 DIN modules, Standard DIN rail Format (DIN43880)

High Accuracy - IEC62053-21/22 Class 1.0,0.5S

  • Import & Export active energy
  • Import & Export reactive energy
  • Instant Volt, Amp, Power factor, Frequency, Active power, Reactive power & Apparent power

Industrial control & AMR compatible

  • Isolated pulse output and IR (DIN43864)
  • RS485 communication port, Modbus Protocol

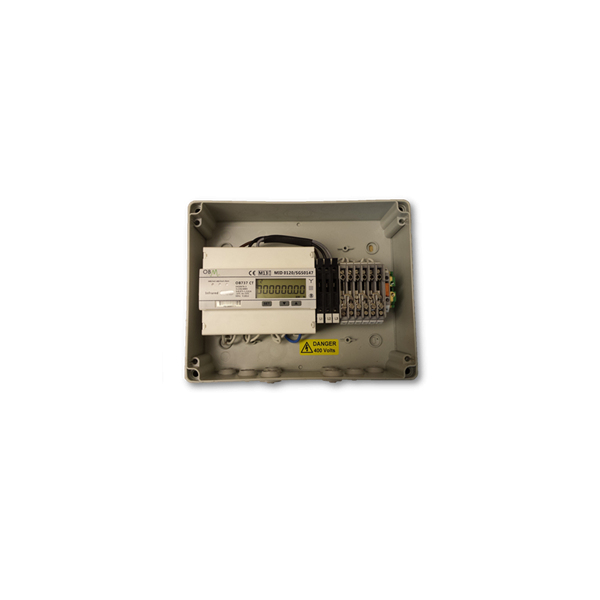

Prewired kit including

1 x OB737CT MID certified multifunction meter
1 x IP65 Enclosure
3 x Fuse Carriers (Including spare fuses)
1 x Neutral Terminal with disconnect
1 x Earth Terminal
3 x CT shorting Terminal Pairs with disconnects & Test Terminals

Dimensions
250 x 200 x 122 mm

£270.00
Availability: In stock
SKU
OB737CT-AK14-IP65-TTB
OB737CT-AK14-IP65-TTB MID CT Meter Kit IEEE C57.13 is available to buy in increments of 1

Owen Brothers Retrofit CT Metering Kits are designed for existing installations where complete disconnection of conductors is not possible, they allow safe, certified and simple installations.

All products allow for data collection and include pulsed output & Modbus as standard with GSM/GPRS & Ethernet TCP/IP Options.

Identify waste and potential energy saving opportunities.

• Integrating our optional Automatic Meter Reading system helps achieve the Carbon Trust Standard and Carbon Reduction Commitment. An element under the tax efficient enhanced capital allowance scheme.

• Can be used in any commercial or industrial application.

• Retrofit metering kits are designed to measure the energy consumed by a complete installation or part of it. For example main incoming supply, manufacturing or offices.

• It is possible to measure voltage, current, frequency, active and reactive power, power factors, maximum demand.

• Complying with BSEN62053-21/22 Class 1.0, 0.5S.

• Multi Tariff - 4 TOU Rates can be set

• M.I.D Approved 0120/SGS0130 Annex B & D (Offgem)

• Split core Current Transformers 100:5A up to 4000:5A ratios are available preventing cable re-routing or cable breaks for simple retrofit installations.

• Supplied pre-wired with cable entry glands & convenient knockouts.

• Connections are simple and clearly labelled.

• Built in phase rotation, wrong phase sequence alarm.

• Ingress Protection - Minimum IP65

• Includes CT Test Terminal Block IEEE C57.13

OB737CT-TK-IP65-TTB (Test Terminal Block with CT shorting links & disconnects)

Fully MID Approved Annex B & D - suitable for export of energy to the grid, industrial/commercial billing etc.

Three phase CT metering - 7 DIN modules, Standard DIN rail Format (DIN43880)

High Accuracy - IEC62053-21/22 Class 1.0,0.5S

● Import & Export active energy

● Import & Export reactive energy

● Instant Volt, Amp, Power factor, Frequency, Active power, Reactive power & Apparent power

Industrial control & AMR compatible

● Isolated pulse output and IR (DIN43864)

● RS485 communication port, Modbus Protocol

Large clear backlit display


Prewired kit including

1 x OB737CT MID certified multifunction meter

1 x IP65 Enclosure

3 x Fuse Carriers (Including spare fuse)

1 x Neutral Terminal with disconnect

1 x Earth Terminal

3 x CT shorting Terminal Pairs with disconnects & Test Terminals

Elastic entries on top, with cable covering, masking and labelling strips, additional double-membrane seals and other accessories

250 x 200 x 122 mm
