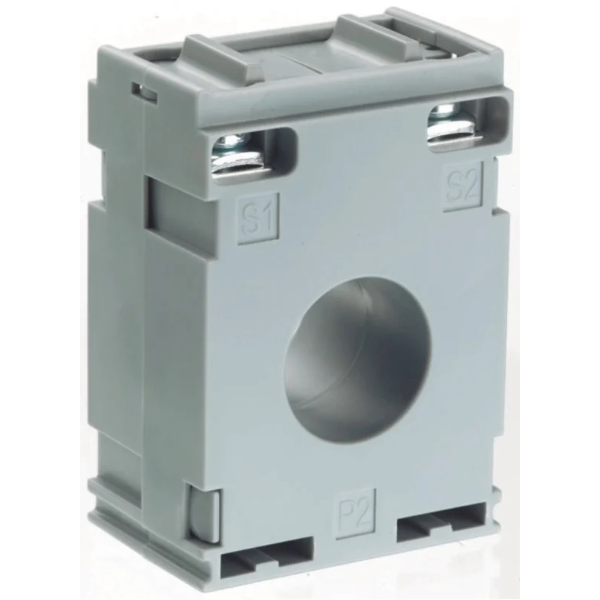

CT132 Solid Core Current Transformer - 100A, 150A, 200A
The CT132 Current Transformers are used for transforming various Primary Currents into 5A or 1A standard secondary using up to 21mm diameter cables.
FEATURES
- Class 1 Rating
- DIN rail mounting clip supplied
- Built in sealable terminal covers
- Mounting feet supplied
- Narrow width - 45mm
TECHNICAL SPECIFICATION
- Conforms to IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
- Rated system voltage 0.72/3kV
- Ambient temperature range -30°C to 85°C
- Continuous current 1.2 x rated current
CT132 Solid Core Current Transformer - 100A, 150A, 200A is available to buy in increments of 1
