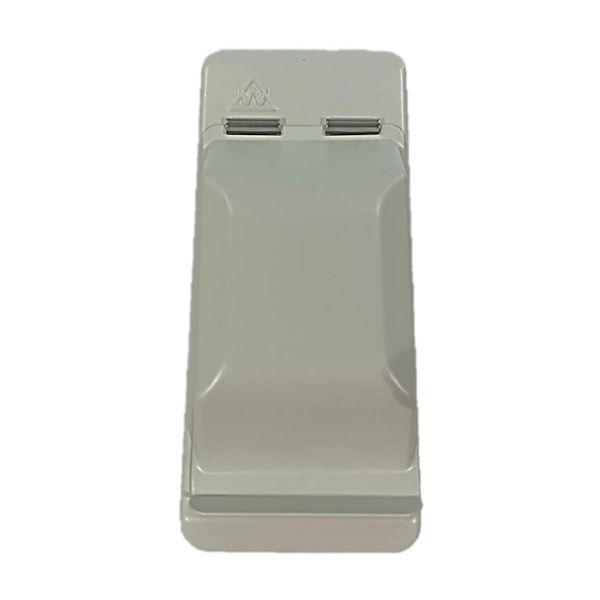

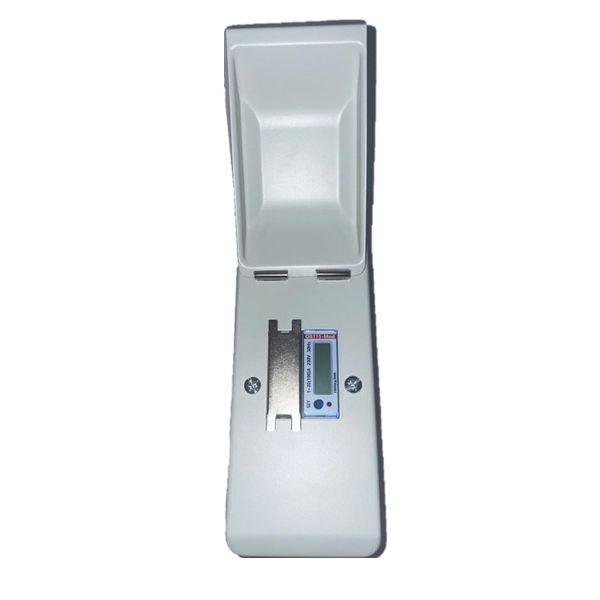

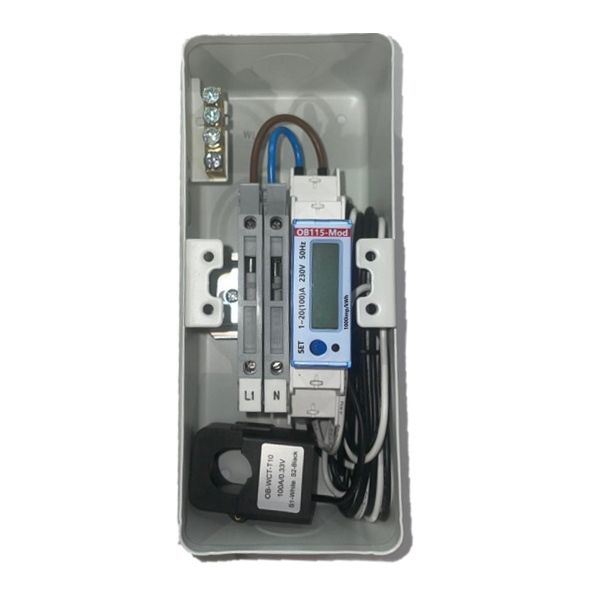

100A single phase CT operated meter with a split or solid core 2m millivolt CT, pre-wired with fuses in a metal lidded 2 way enclosure.
Certification: MID Certified
Type: Single-phase high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/ export, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible
Housing: 1 DIN Module case
Usage: Suitable for sub-billing, renewables, solar PV
Current Rating: 330 mV as input 100A CT operated (split or solid)
Voltage: 230V AC 50/60Hz
Pulse Rate: 1000 imp/kWh (2nd pulse rate configurable)
Output: Isolated pulsed output
Display: LCD backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh
Enclosure Dimension: 7.4 (W) x 17.5 (H) x 9 (D) cm
| Model | OB115-MOD 100A Single Phase Metering Kit in Metal Enclosure |
|---|---|
| Length | 20 |
| Height | 15 |
| Bredth | 10 |
| HS Tariff Code | HS9030310000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Individual |
