Certification: MID Certified
Type: Single-phase high-precision kWh meter with RS485 MODBUS RTU
Housing: 1 DIN Module case
Usage: Suitable for sub-billing, renewables, solar generation
Current Rating: 45A Direct connected
Voltage: 230/240V ± 20%
Pulse Rate: 1600 imp/kWh
Output: Pulsed output
Display: LCD Display

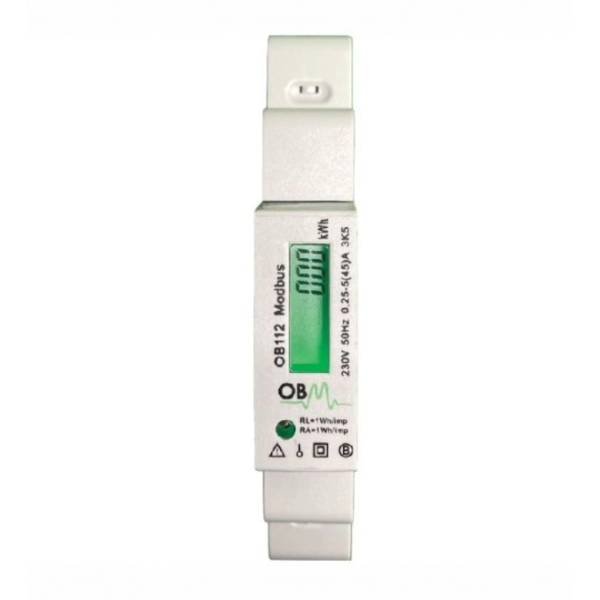

OB112-MOD 45A Single Phase Meter with LCD display & Pulse.
MID Certified Annex B & D
The meter is labeled as follows:
OB111 – OB112 V 01 . x x x
Pulse led and pulse output: 1 = 1000 impulses / kWh (Default) 2 = 2000 impulses / kWh
Reverse counting: 1 = Does not count when energy is reversed 2 = Counts up regardless of energy direction (Default)
Type of display: 1 = LCD without backlight 2 = LCD with backlight OB112 3 = Mechanical register OB111
| Manufacturer | Owen Brothers |
|---|---|
| Model | OB112-MOD |
| Length | 12 |
| Height | 7 |
| Bredth | 2 |
| HS Tariff Code | HS8536901000 |
| Packing Buffer (in percentage) | 5 |
| Packing Type | Shared |
