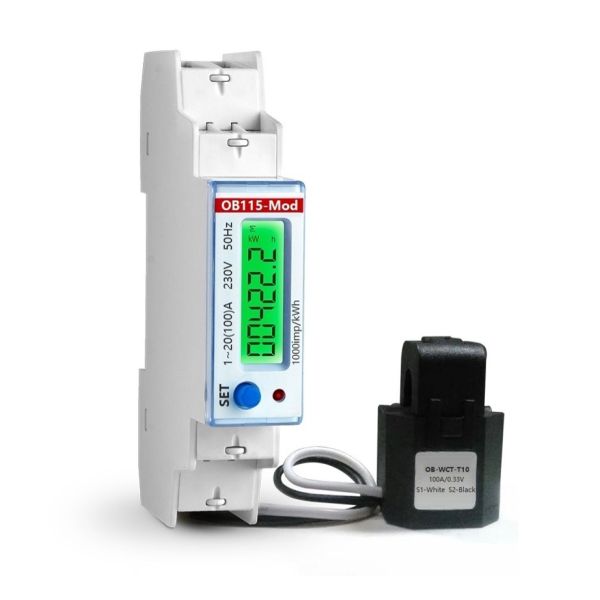

OB115-MOD Single Phase CT Meter (NEW)

Availability: In stock

£37.50

Quick Overview

Benefits and Main Features
● MID approved with module B & D certification.
● Bidirectional energy metering 1 DIN modules,230V AC 50/ 60Hz.
● Solid-core sensor &open-core sensor,330mV ac input 100A
● Display of Voltage, Ampere, kW, PF, Hz, +kWh,-kWh,ΣkWh
● Total energy usage can be calculated via 5 different modes.
● Display Modbus RTU Interface data:baud rate, Modbus id, Parity
● Reactive power and reactive energy available through interface
● S0pulse output, transmission of measured values via pulses.
● LCD display, 5 integer 1 decimal
● Clear green backlight display
● Accuracy class B according to EN50470-3
Accuracy class 1 according to IEC62053-21
● Memory back-up (EEprom)

£37.50

Details



Performance criteria Operating humidity 75% Storage humidity 95% Operating temperature -25°C - +55°C Storage temperature -40 deg;C - +70°C Humanity 75% yearly average,95% on 30 days/year International standard EN50470-3 & IEC62053-21 Accuracy class CI.1 Protection against penetration of dust and water IP51 Insulating encased meter protective class Ⅱ Connection area main terminals Current terminals flexible 1×mm2 0-6mm2



OB115 dimentions



Additional Information

Model OB115-MOD
Manufacturer Owen Brothers
In Depth Transformer connected meter Voltage(v) 230V Current(A) - Iref 5A 1.5 -Itr 0.5A 0.15A -Imax 45A 6A -Imin 0.25A 0.015A -Ist 20mA 3mA Power consumption of current circuits(VA) < 0.01 < 0.01 Power consumption of voltage circuits(W) < 1.3W < 1.3W Frequency (Hz) 50 50 Pulse output Pulse width(ms) 80 80 Pulse constant(imp/kWh) 1600 6400 LED LED constant 1600 6400 Dimension Width (mm) 18 18 Height (mm) 104.5 104.5 Depth (mm) 88 88
