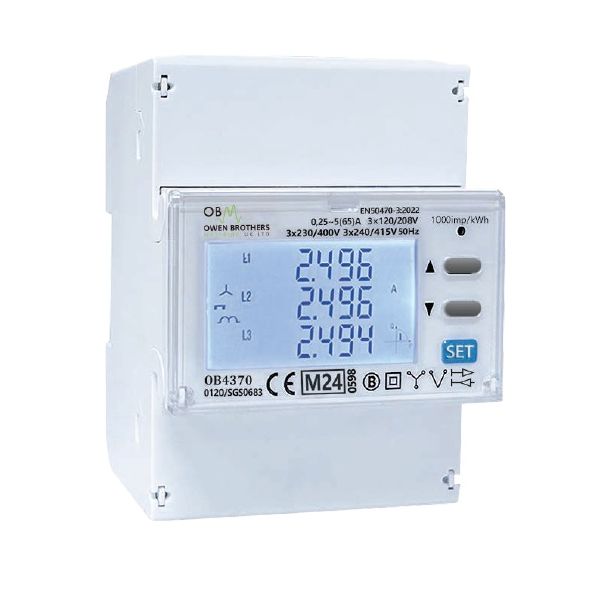

OB4370 65A, Mid Approved, DIN Rail, Direct Connected, RS485, Bi-Directional DIGITAL METER

Be the first to review this product

Certification: MID Certified

Type: Three-phase 65a direct connected, high-precision kWh meter. Accuracy class B. RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export active power, reactive power, dual sources, tariffs, SO output. Compatible with panel mount adapter.

Housing: 4 DIN Module case

Usage: Suitable for industrial/commercial sub-billing, FIT/ROC, renewables, solar PV

Current Rating: 65A

Voltage: 100V-415V

Pulse Rate: 1000 imp/kWh

Output: Isolated pulsed output

Display: LCD Backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh

£69.00

Availability: In stock

SKU

OB4370

OB4370 65A, Mid Approved, DIN Rail, Direct Connected, RS485, Bi-Directional DIGITAL METER is available to buy in increments of 1

MID Certified Annex B & D 0120/SGS0684
Compatible with LV, MV & HV applications
More than 300 electrical parameters measured and displayed
Utility & Backup PSU measurements
Voltage Asymmetry (Phase-Phase, Phase-Neutral), Current Asymmetry
Phase sequence indication
System and phase bi-directional energy
RS485 Communication port, Modus protocol
Import/Export Active kWh
Import/Export Reactive kWh
Generator/Grid Tariffs
TOU Tariffs

More Information

More Information
Model	OB4370
Length	30
Height	25
Bredth	15
HS Tariff Code	HS9030310000
Packing Buffer (in percentage)	10
Packing Type	Individual

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

OB4370D Manual
