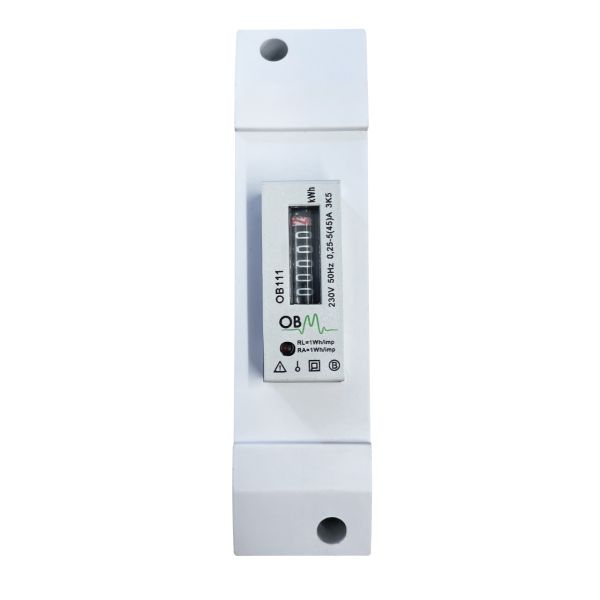

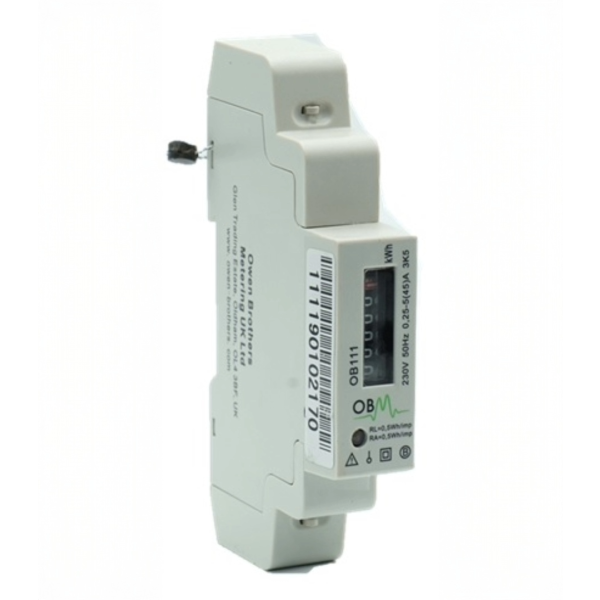

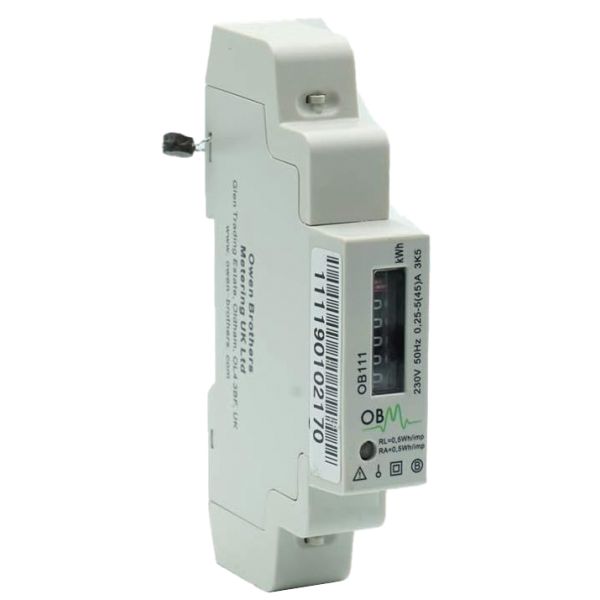

OB111 45A, Mid Approved, DIN Rail, Direct Connected ANALOGUE METER

OB111 45A Single Phase Meter with Mechanical Display & Pulse.

MID Certified Annex B & D

The meter is labeled as follows:

    OB111 – OB112 V 01 . x x x

Pulse led and pulse output:        1 = 1000 impulses / kWh (Default)        2 = 2000 impulses / kWh

Reverse counting:        1 = Does not count when energy is reversed        2 = Counts up regardless of energy direction (Default)

Type of display:        1 = LCD without backlight        2 = LCD with backlight  OB112        3 = Mechanical register  OB111
