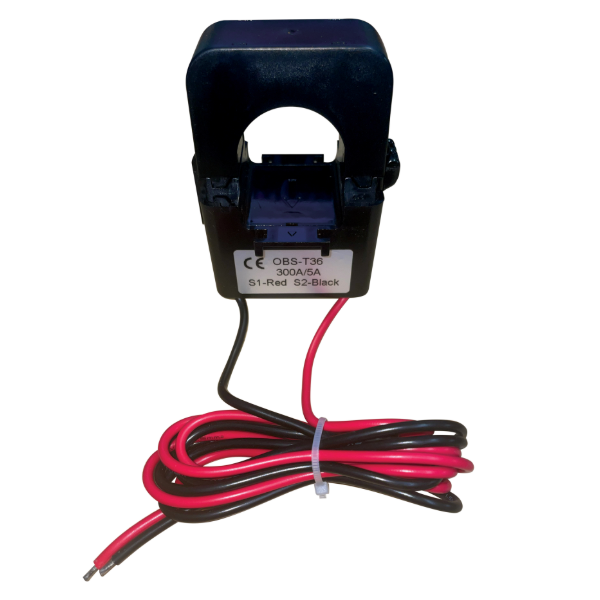

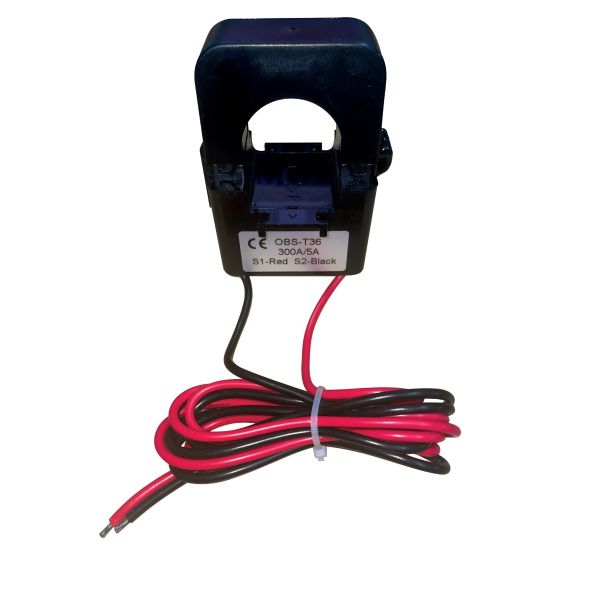

OBCT-T36 CTS ARE COMPACT HIGH QUALITY, HIGH ACCURACY, CLASS 1 SPLIT-CORE CURRENT TRANSFORMERS.

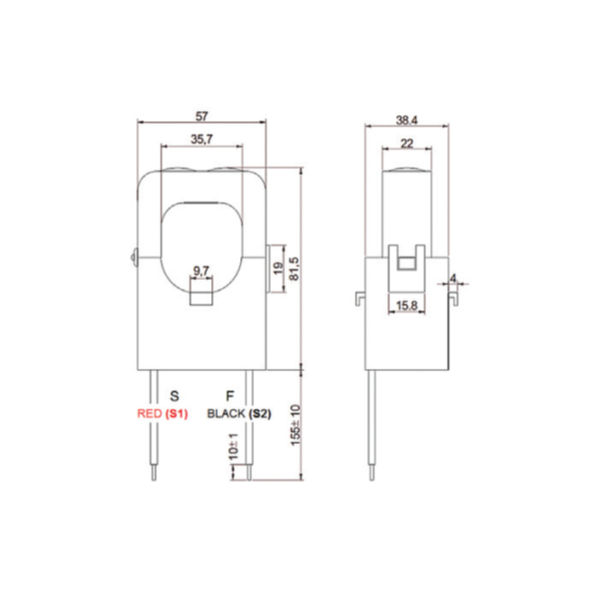

The diameter of the inner hole is 36 mm, 1m lead (2.5mm wire)

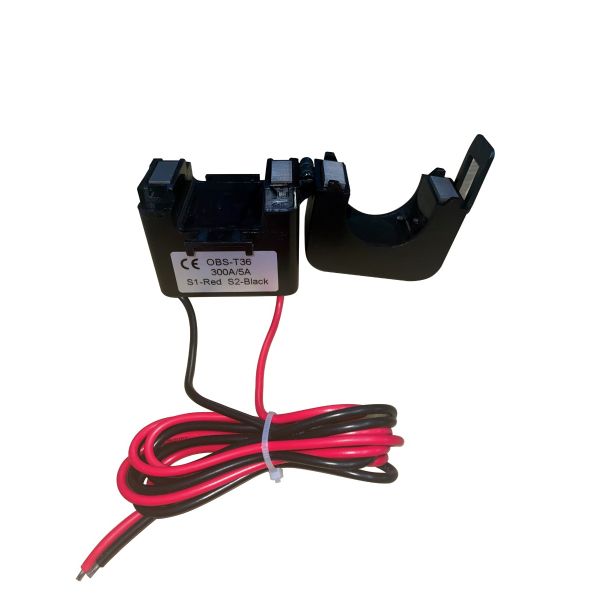

Easy to install, simply clip around cables, indicator arrows embossed on the inside of the CT
Available in 300/5, 400/5 & 600/5 Amperage
OTHER TYPES OF CURRENT TRANSFORMERS AVAILABLE:
• Solid core
• Busbar
• Large amperage
• Summation CTs
| Model | OBCT-T36 Split Core Class 1 Current Transformers |
|---|---|
| Manufacturer | Owen Brothers |
| In Depth | High accuracy split core current transformers |
| Length | 15 |
| Height | 7 |
| Bredth | 6 |
| HS Tariff Code | HS8536901000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Shared |
