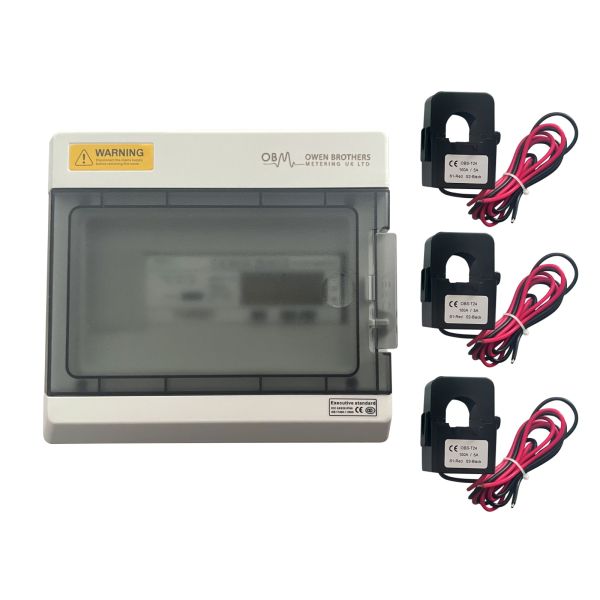

OB737-CT IP66 3 Phase Metering Kit

Pre-wired with fuses in 9 Way IP66 Enclosure

Choice of CT's

Features

• M.I.D Approved Annex B & D (Offgem)
• Complies with BSEN62053-21/22 Class 1.0, 0.5S.
• Split Core Current Transformer Ratios up to 4000/5A are available
• Multi Tariff - Up to 4 Rates can be set
• Measures Voltage, Current, Frequency, Active & Reactive Power & Power Factors
• Measures Import & Export kWh, Active & Reactive kVARh.
• Stores Last 12 Monthly Readings (Download with OBM Software)
• Built in phase rotation, wrong phase sequence alarm.

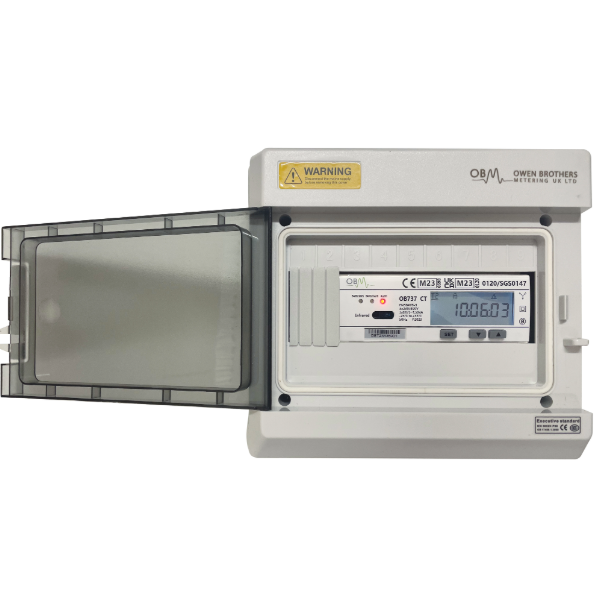

9 Way IP66 Polycarbonate Enclosure

• Dimensions: 22cm (W) x 20cm (H) x 10cm (D)
• Fitted with din rail
• Supplied with blanking plates
• Frosted window
