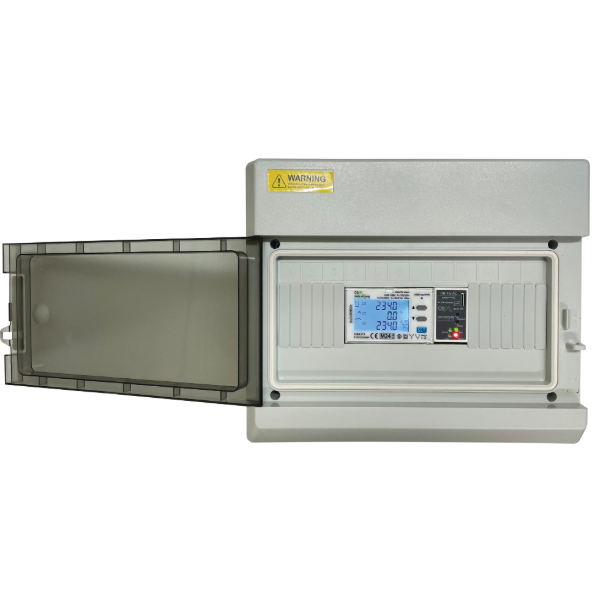

OB4373-CT Three Phase Multi-Function Online Monitoring Kit

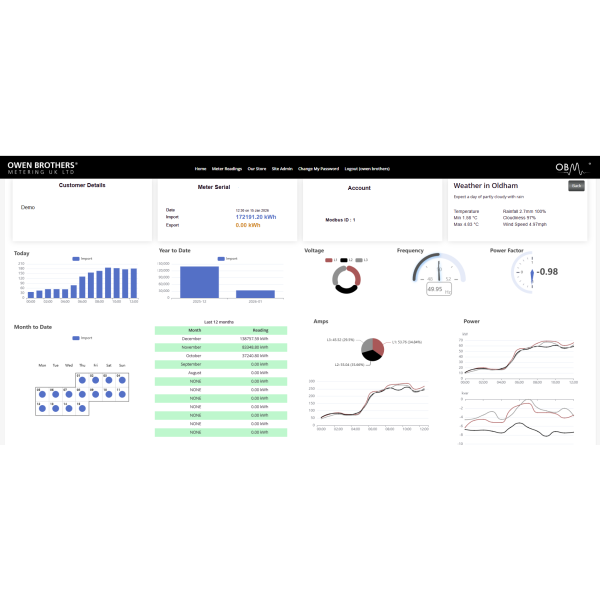

OB4373CT MID meter, pre-wired with fuses in a 9 way IP66 polycarbonate enclosure, complete with G6 modem, SIM, high gain magnetic ariel and a set of 3 split core current transformers to suit (up to 600/5)  Includes user account set up on the online platform for accessing the metering data. Access to the online monitoring platform for a period of 12 months.

Import / Export or Generation Metering

Features

• MID Certified Annex B & D 0120/SGS0684
• Compatible with LV, MV & HV applications
• More than 300 electrical parameters measured and displayed
• Utility & Backup PSU measurements
• Harmonic analysis of voltage and current up to 41st order
• Voltage Asymmetry (Phase-Phase, Phase-Neutral), Current Asymmetry
• Phase Sequence indication
• System and phase bidirectional energy
• Load survey/profile, programmable intervals
• Programmable DO for Loadshedding, Reverse Relay, Export Limitation
• RS485 communication port. Modbus protocol

9 Way IP66 Polycarbonate Enclosure

• Dimensions: 22cm (W) x 20cm (H) x 10cm (D)
• Fitted with din rail
• Supplied with blanking plates
• Frosted window

If you require further details, please do not hesitate to contact us on sales@owen-brothers.com

or call us on 0161 624 6211
