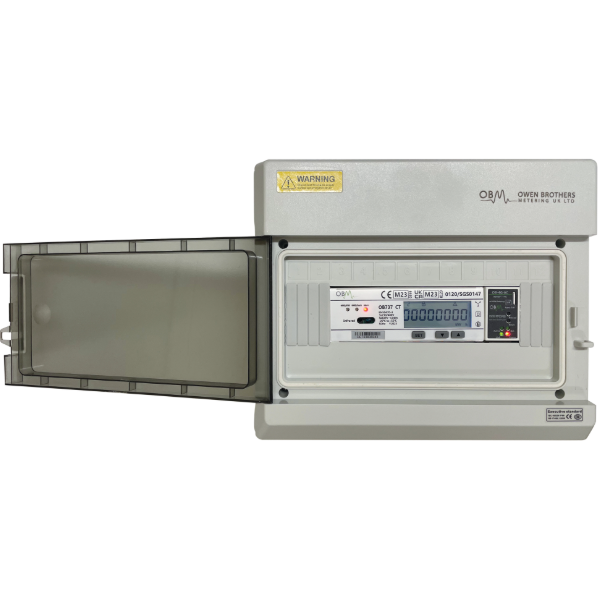

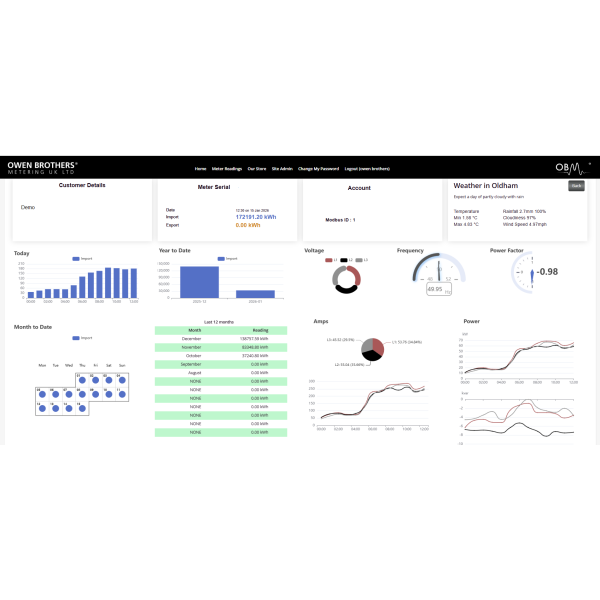

OB737CT MID meter pre-wired with fuses in a 12 way IP66 polycarbonate enclosure, complete with a G6 modem, SIM card, high gain magnetic aerial and a set of 3 split core current transformers to suit. Includes user account set up on the obmeters platform for accessing the metering data.
Certification: MID Certified
Type: Three-phase CT operated, high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, industrial control, AMR compatible. Memory Backup. Meter displays if power fails, TOU, up to four tariffs, summertime switch. Fully programmable.
Housing: 7 DIN Module case
Usage: Suitable for industrial/commercial sub-billing, FIT/ROC, renewables, solar PV
Current Rating: 100A + programmable CT ratio
Voltage: 230V AC 50/60Hz
Pulse Rate: 320 imp/kWh @ 100/5
Output: Isolated pulsed output and IR
Display: LCD Backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh
Dimensions: 28 (W) x 23 (H) x 12 (D) cm
Any number of meter combinations are available (up to 32 per modem) – please contact us for further details on our bespoke remote monitoring kits
| Model | OB737CT Three Phase Online Monitoring Kit with 12 Months Remote Monitoring Access |
|---|---|
| Length | 37 |
| Height | 31 |
| Bredth | 20 |
| HS Tariff Code | 9030310000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Individual |
