OB4373CT Three Phase Multi-Function in IP66 Enclosure

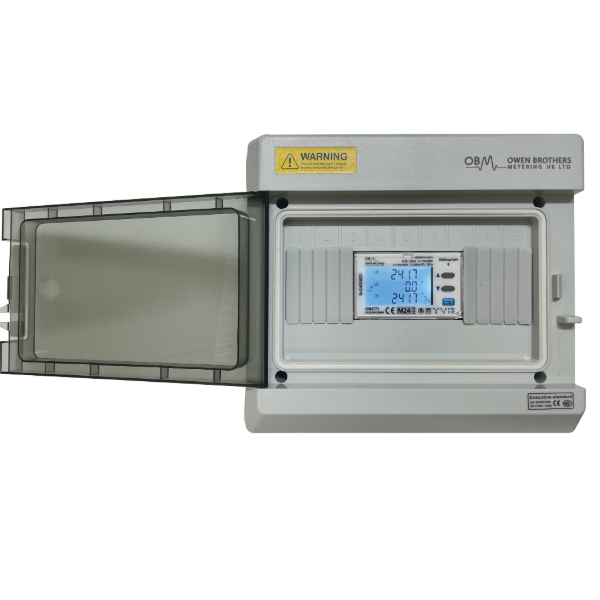

OB4373 100A three phase CT operated meter pre wired with fuses in a 9 way IP66 polycarbonate enclosure with a frosted window, clipped onto fitted din rail with blanking plates. Current transformers to suit.

Certification: MID certified

Type: Three-phase CT operated, high-precision kWh meter, firmware upgradable, max/min/average demand, programmable digital output for loadshedding, export limitation, reverse relay, transformer metering, compatible with

LV,MV, HV applications, harmonic analysis, phase sequence indication, allows CT/PT configuration, 5v DC output for communication equipment, dual source inputs for utility/generator measurement Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, programmable load survey/profile intervals, voltage asymmetry, true RMS measurements. Over 300+ parameters measured

Housing: 4 DIN Module case

Usage: Suitable for industrial/commercial sub-billing, FIT/ROC, renewables, solar PV

Current Rating: 100A + programmable CT ratio

Voltage: 230V AC 50/60Hz

Pulse Rate: 320 imp/kWh @ 100/5

Output: SO Isolated pulsed output

Display: LCD Backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh

Dimensions: 22 (W) x 20 (H) x 10 (D) cm
