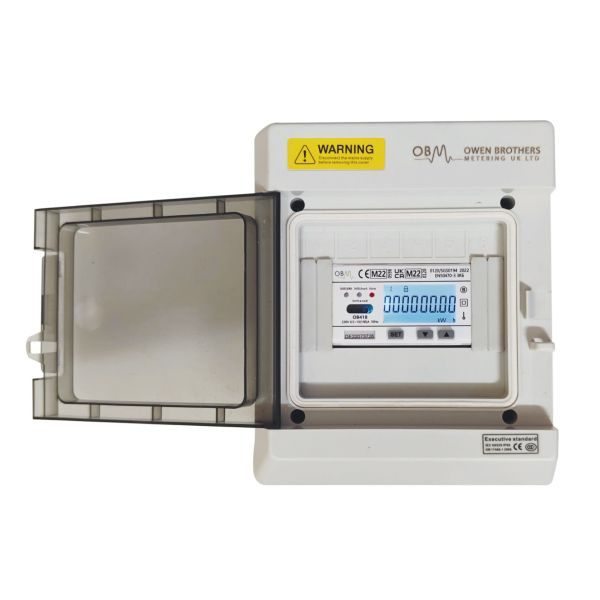

100A, MID certified single phase direct connected meter in an IP66 6 way polycarbonate enclosure with a clear window, clipped onto fitted din rail with blanking plates.
Certification: MID Certified

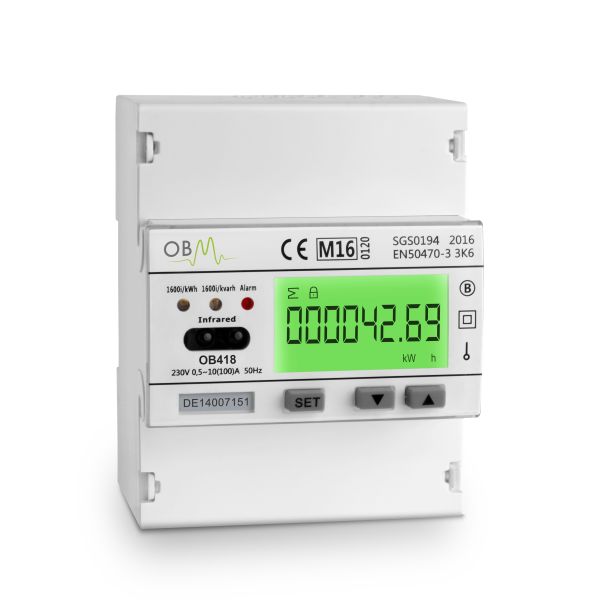

Type: Single-phase high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU, Bi-directional, import/export, set up to 4 tariffs, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible
Housing: 4 DIN module case
Usage: Suitable for sub-billing, renewables, solar PV
Current Rating: 100A Direct connected
Voltage: 230/240V ± 20%
Pulse Rate: 1600 imp/kWh
Output: Isolated pulsed output
Display: LCD Backlit display
Max Cable Size: 25mm
Dimensions: 16 (W) x 20 (H) x 10 (D) cm
| Model | OB418 100A Single Phase Multi-Function MID Meter in IP66 Enclosure |
|---|---|
| Length | 12 |
| Height | 7 |
| Bredth | 6 |
| HS Tariff Code | HS8536901000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Shared |
