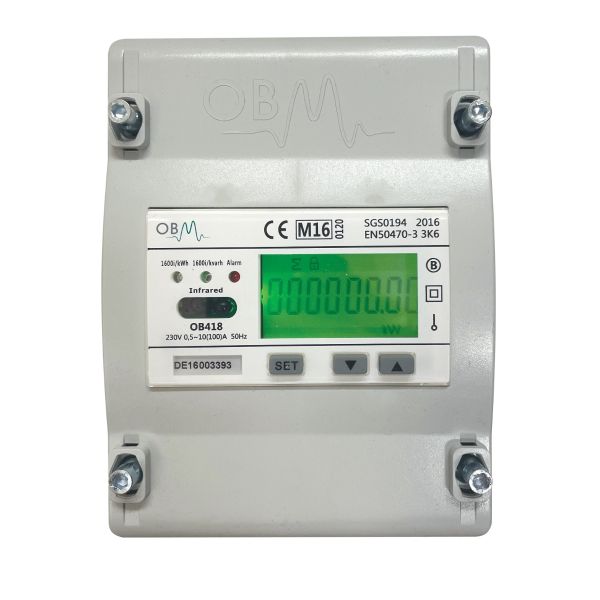

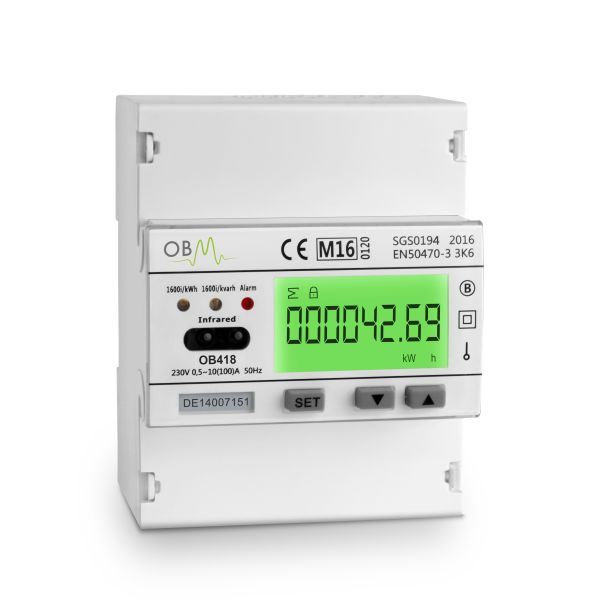

100A MID certified single phase active energy meter in an IP40 polycarbonate surface mounted style enclosure, complete with screw fixings and plastic din rail. Secure cables with adjustable fixings to suit either 16mm or 25mm cable. Wiring labelling debossed onto enclosure.
Certification: MID Certified
Type: Single-phase high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU, Bi-directional, import/export, set up to 4 tariffs, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible
Housing: 4 DIN module case
Usage: Suitable for sub-billing, renewables, solar PV
Current Rating: 100A Direct connected
Voltage: 230/240V ± 20%
Pulse Rate: 1000 imp/kWh
Output: Isolated pulsed output
Display: LCD Backlit display
Dimensions: 10 (W) x 14 (H) x 6.5 (D) cm
| Model | OB418 100 Amp Multi Function Single Phase Surface Mounted Meter |
|---|---|
| Length | 14.5 |
| Height | 11 |
| Bredth | 9 |
| HS Tariff Code | 9030310000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Individual |
