OB4374 Three Phase Multi Circuit Digital Meter - Millivolt CT - In IP66 Enclosure

The OB4374 meter supports three-phase three-wire, three-phase four-wire and single phase modes and can be configured for 6 single phases or 2 three phases and feature a plug-and-play RJ485 design making installation quick and easy.

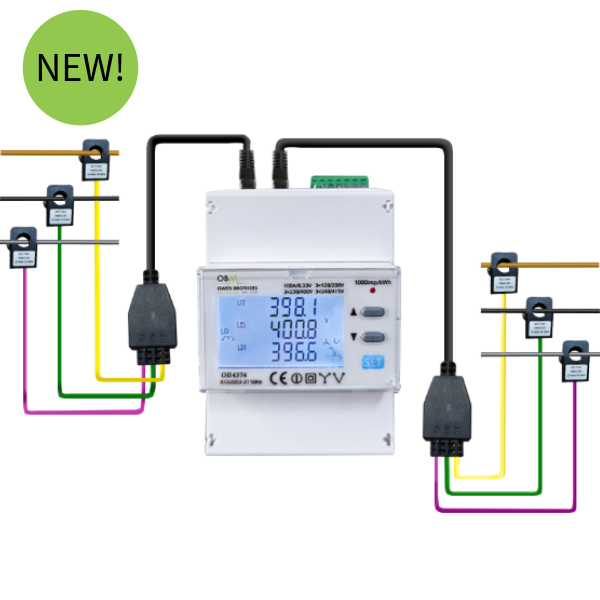

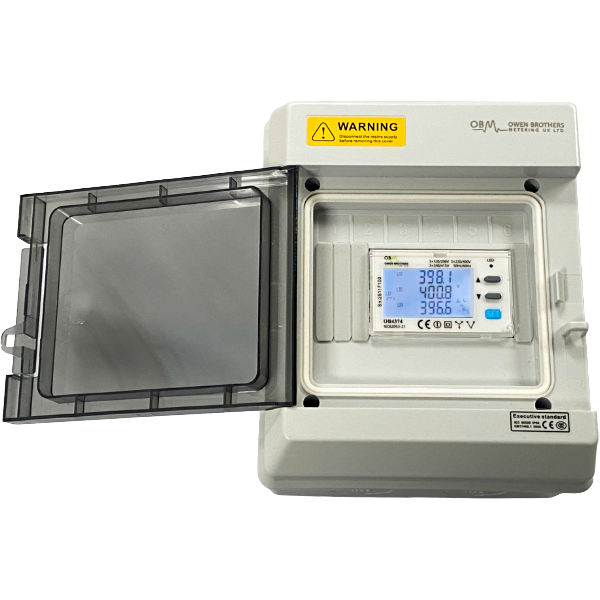

Complete with 6 x calibrated millivolt split core current transformers and a 5m length cable, pre-wired with fuses in a 6 way IP66 polycarbonate enclosure.

Type: Three-phase CT operated, high-precision kWh meter, firmware upgradable, max/min/average demand, programmable digital output for loadshedding, export limitation, reverse relay, transformer metering, compatible with LV,MV, HV applications, harmonic analysis, phase sequence indication, 5v DC output for communication equipment, dual source inputs for utility/generator measurement Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, programmable load survey/profile intervals, voltage asymmetry, true RMS measurements. Over 300+ parameters measured.

Housing: 4 DIN Module case

Usage: Suitable for renewables and solar PV

Nominal Input: 0.33V CT - 80A/100A

Voltage: 230V AC 50/60Hz

Output: SO Isolated pulsed output

Display: LCD Backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh

Enclosure Dimensions: 16 (W) x 20 (H) x 10 (D) cm
