Single Phase Wireless CT Inverter Kit - Eastron Compatible

    < LoRa-225 Installation Guide

When distance makes wiring impractical, our wireless CT solution keeps your inverter and main incomer perfectly connected. The kit includes:

Inverter LoRa unit

1 x OBM-LoRa-225 pre-wired in a metal enclosure* for connection to the inverter RS485 meter port (Optional Generation Meter can be added). Complete with standard LoRa antenna.

Enclosure Dimensions: 7.4 (W) x 17.5 (H) x 9 (D) cm

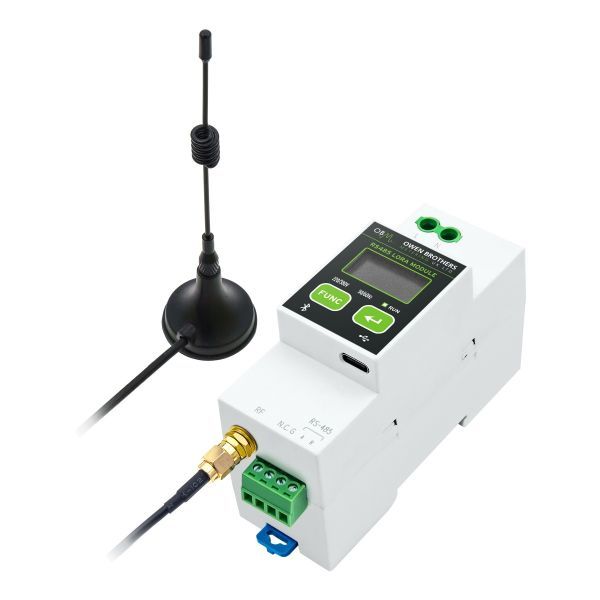

OBM-LoRa-225 module

The OBM-LoRa-225 unit is the latest version of our product, featuring significant improvements including a firmware upgrade, Bluetooth programmability, increased spreadfactor, and support for a faster baud rate of 115200 (compared to the previous 9600). These enhancements ensure that the OBM-LoRa-225 unit is fully compatible with a wide range of inverters and RS485 Modbus devices on the market, providing greater versatility and performance.

Wireless Import/Export meter with LoRa unit

1 x OB115-MOD-V2 with 3m CT lead and 1 x OBM-LoRa-225 module in a metal enclosure*. Complete with standard LoRa antenna.

Enclosure Dimensions: 11 (W) x 17.5 (H) x 9 (D) cm

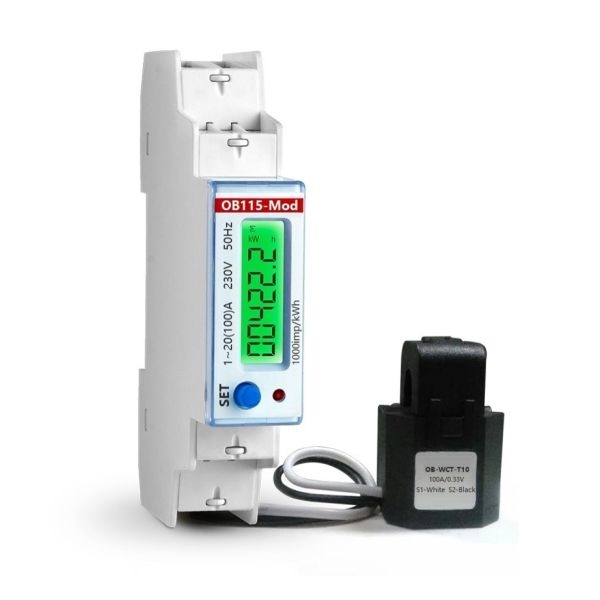

OB115-MOD-V2 100A MID Meter

SDM120 & SDM230 Eastron Modbus Register Map. Single-phase high-precision kwh meter, complete with split core CT as standard with 3 metre lead. Solid core CT also available on request. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible. Modbus ID change by button press. Fully programmable. Highest supporting baud rate 9600 bps.

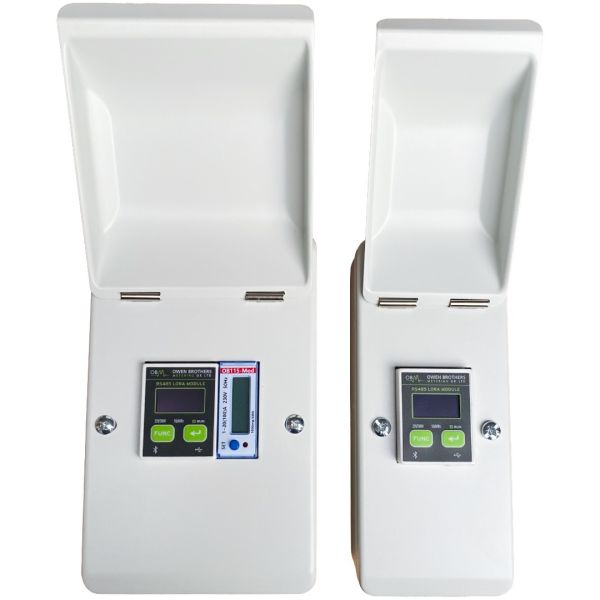

* Also available in IP66 polycarbonate enclosures

Compatible with most single phase inverters – please check with our technical team for compatibility with other inverter brands if not listed below.
