** NEW ** Three Phase Wireless CT Inverter Kit

Allows you to connect RS485 Modbus RTU devices over distances where it is impractical or impossible to run data cables. Compatible with most three phase inverters – please check with our technical team for compatibility with other inverter brands if not listed below.

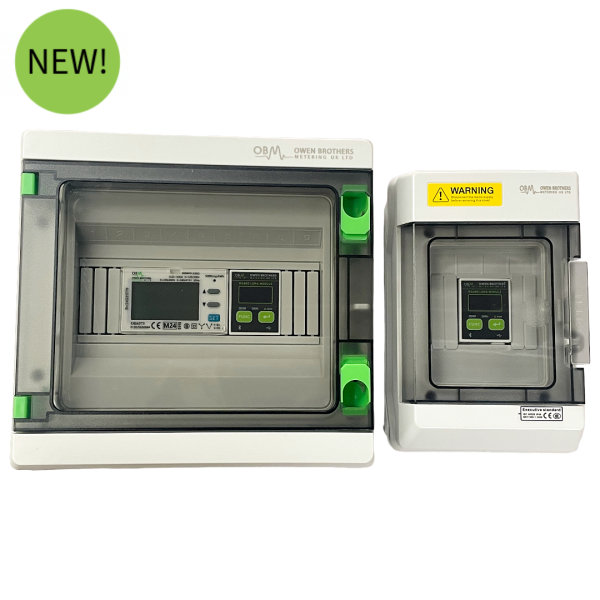

The kit includes:

Inverter LoRa Unit

1 x OBM-LoRa-225 pre-wired in a 4-way IP66 polycarbonate enclosure for connection to the inverter RS485 meter port (optional generation meter). Complete with standard LoRa antenna.

Enclosure Dimensions: 10 (W) x 20 (H) x 10 (D) cm.

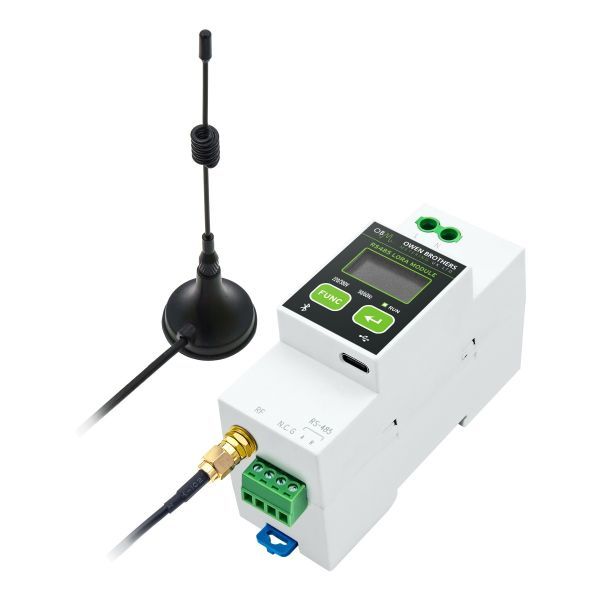

OBM-LoRa-225 Module

The OBM-LoRa-225 unit is the latest version of our product, featuring significant improvements including a firmware upgrade, Bluetooth programmability, increased spread factor, and support for a faster baud rate of 115200 (compared to the previous 9600). These enhancements ensure that the OBM-LORA-225 unit is fully compatible with a wide range of inverters and RS485 Modbus devices on the market, providing greater versatility and performance.

Wireless Import/Export Meter

1 x OB4373 three phase CT MID meter (re-mapped as required) and 1 x OBM-LoRa-225 module pre-wired in a 9-way IP66 polycarbonate enclosure. With a set of 3 split core CTs to suit amperage. Complete with standard LoRa antenna.

Enclosure Dimensions: 22 (W) x 20 (H) x 10 (D) cm

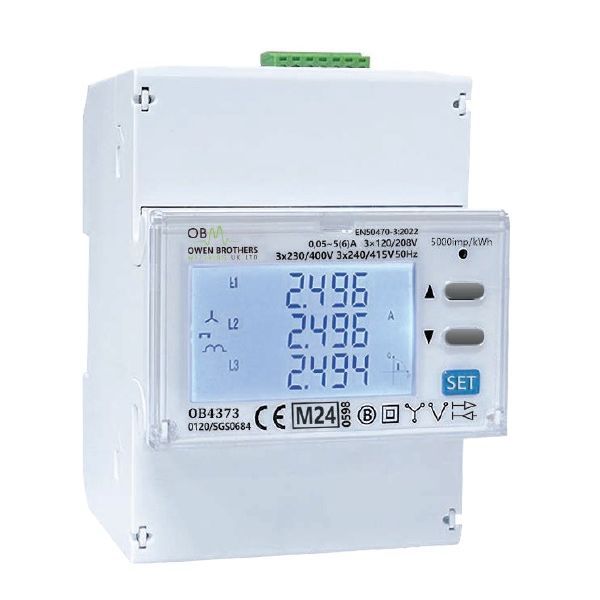

OB4373 CT meter

Three-phase high-precision kWh meter, firmware upgradable Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, programmable load survey/profile intervals, voltage asymmetry, true RMS measurements.
