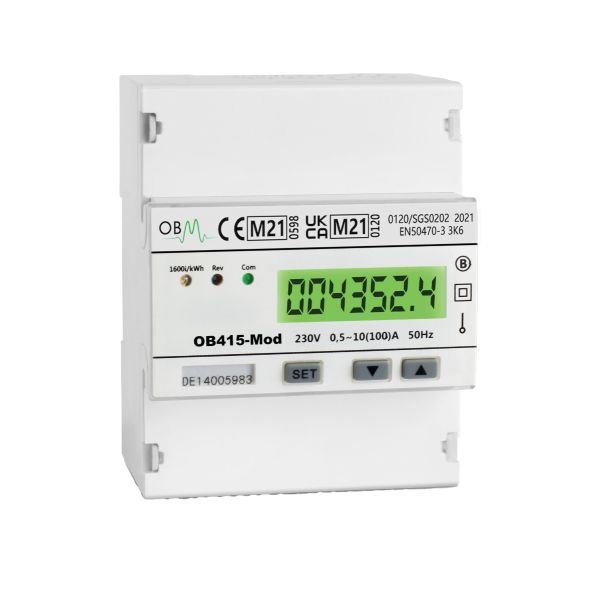

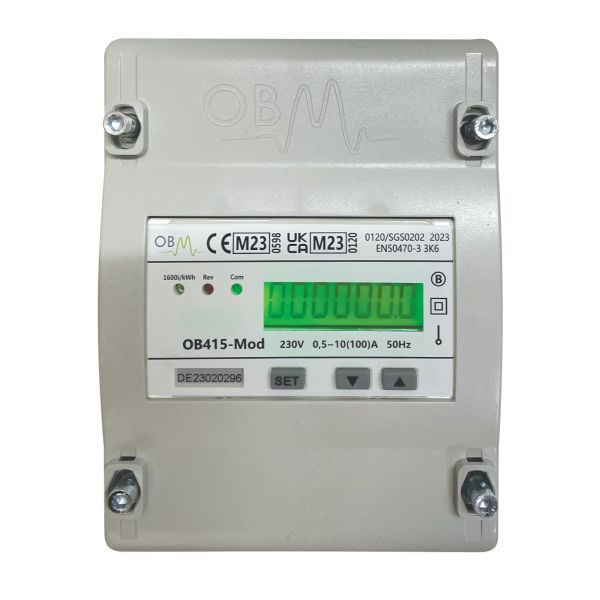

100A MID certified single phase active energy meter in an IP40 polycarbonate surface mounted style enclosure, complete with screw fixings and plastic din rail. Secure cables with adjustable fixings to suit either 16mm or 25mm cable. Wiring labelling debossed onto enclosure.
Certification: MID Certified
Type: Single-phase high-precision kWh meter. Class .1 Accuracy with RS485 MODBUS RTU
Housing: 4 DIN Module case
Usage: Suitable for sub-billing
Current Rating: 100A Direct connected
Voltage: 230/240V ± 20%
Pulse Rate: 1000 imp/kWh
Output: Isolated pulsed output
Display: LCD Backlit display

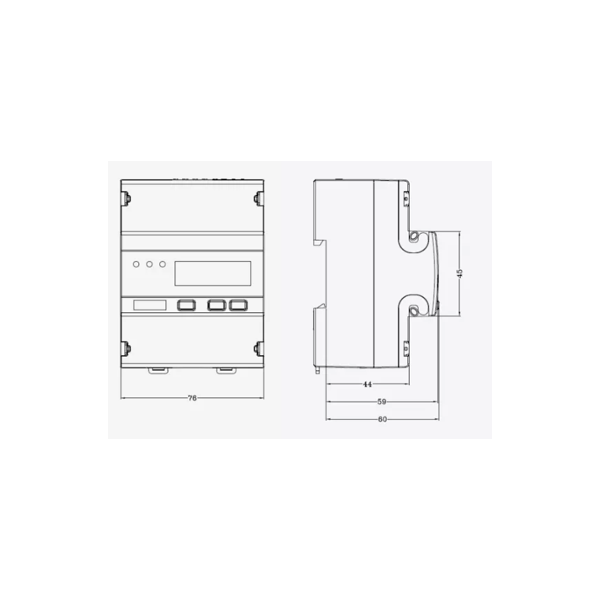

Dimensions: 8 (W) x 16 (H) x 9.5 (D) cm
High Accuracy
Communication Channels
Large clear backlit display
| Model | OB415-MOD 100 Amp Single Phase Surface Mounted Meter |
|---|---|
| Length | 37 |
| Height | 31 |
| Bredth | 30 |
| HS Tariff Code | HS9030310000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Individual |
