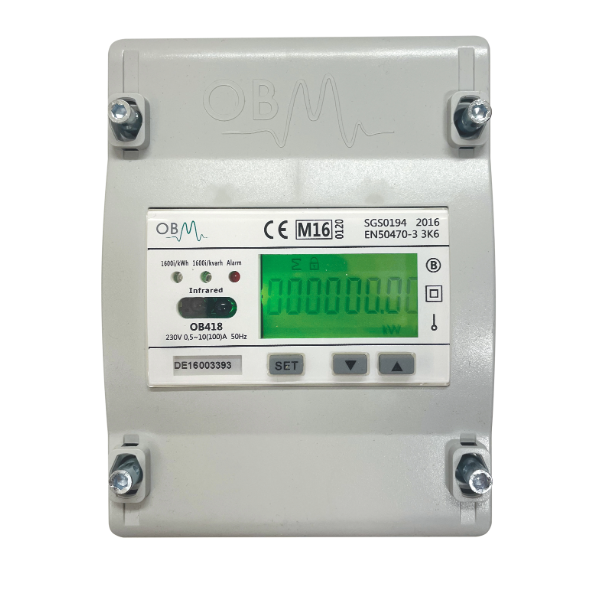

OB418 100 Amp Multi Function Single Phase Surface Mounted Meter

OB418 100 Amp Multi Function Single Phase Surface Mounted Meter

OB418 100 Amp Multi Function Single Phase Surface Mounted Meter



OB418 series is a Smart Energy Meter packed with all the features & functionality to cover even the most demanding of projects.

High Accuracy - EN50470 Class 1.0, MID Certified Annex B & D

  • Import & Export active energy
  • Import & Export reactive energy
  • Instant Volt, Amp, Power factor, Frequency, Active power, Reactive power & Apparent power

Industrial control & AMR compatible

  •  Isolated pulse output and IR (DIN43880)
  •  RS485 communication port, Modbus Protocol

Large clear backlit display

  • CI.1 Accuracy (EN50470)

IP40 Polycarbonate Surface Mounted Casing

  • 14cm (H), 10cm (W) 6.7cm (D)
  • Sealed in each corner
  • Includes options for both 16mm or 25mm cable with clear wiring instructions within the case moulding.

£55.49
Availability: In stock
SKU
OB418-WS
OB418 100 Amp Multi Function Single Phase Surface Mounted Meter is available to buy in increments of 1

OB418 series is a Smart Energy Meter packed with all the features & functionality to cover even the most demanding of projects.

High Accuracy - EN50470 Class 1.0, MID Certified Annex B & D

  • Import & Export active energy
  • Import & Export reactive energy
  • Instant Volt, Amp, Power factor, Frequency, Active power, Reactive power & Apparent power

Industrial control & AMR compatible

  •  Isolated pulse output and IR (DIN43880)
  •  RS485 communication port, Modbus Protocol

Large clear backlit display

  • CI.1 Accuracy (EN50470)

IP40 Polycarbonate Surface Mounted Casing

  • 14cm (H), 10cm (W) 6.7cm (D)
  • Sealed in each corner
  • Includes options for both 16mm or 25mm cable with clear wiring instructions within the case moulding.
More Information
ModelOB418 100 Amp Multi Function Single Phase Surface Mounted Meter
Length14.5
Height11
Bredth9
HS Tariff Code9030310000
Packing Buffer (in percentage)10
Packing TypeIndividual
