Certification: MID Certified

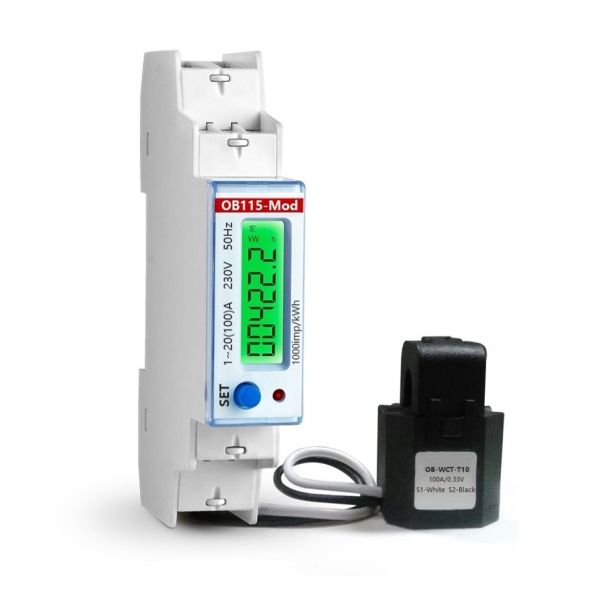

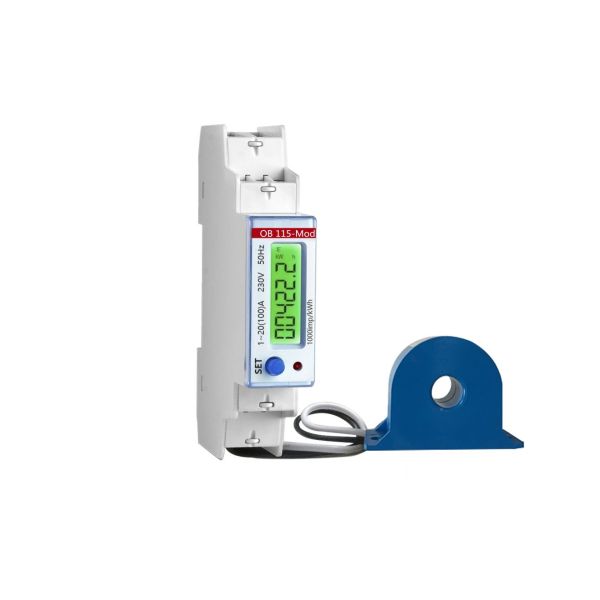

Type: Single-phase high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/ export, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible
Housing: 1 DIN Module case
Usage: Suitable for sub-billing, renewables, solar PV
Current Rating: 330 mV as input 100A CT operated (split or solid)
Voltage: 230V AC 50/60Hz
Pulse Rate: 1000 imp/kWh (2nd pulse rate configurable)
Output: Isolated pulsed output
Display: LCD backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh
| Model | OB115-MOD 100A, Mid Approved, DIN Rail, CT Operated, RS485, Bi-Directional DIGITAL METER |
|---|---|
| Length | 12 |
| Height | 7 |
| Bredth | 2 |
| HS Tariff Code | HS8536901000 |
| Packing Buffer (in percentage) | 0 |
| Packing Type | Shared |
