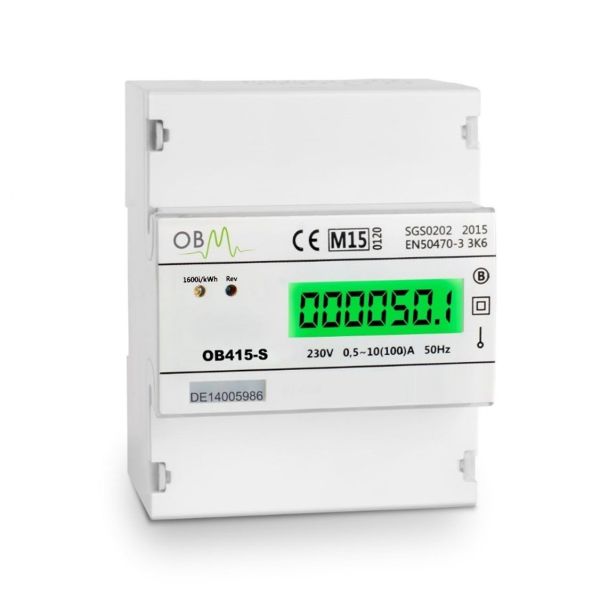

OB415-S 100 AMP Single Phase Surface Mounted Meter

OB415-S series is a fully MID UKCA certified single phase Active energy meter with pulse and backlit display.

Single phase Direct 100A metering - 4 DIN modules, Standard DIN rail format (DIN43880)

High Accuracy - EN50470 Class 1.0, MID Certified Annex B & D

• Isolated pulse output

• Large clear backlit display

IP40 Polycarbonate Surface Mounted Casing

• Dimensions: 14 (H) x 10 (W) x 6.7 (D) cm
• Sealed in each corner
• Includes options for both 16mm or 25mm cable with clear wiring instructions within the case moulding
