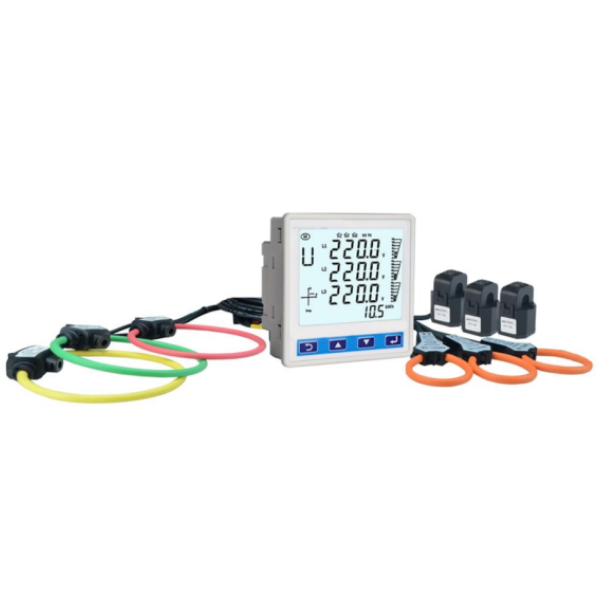

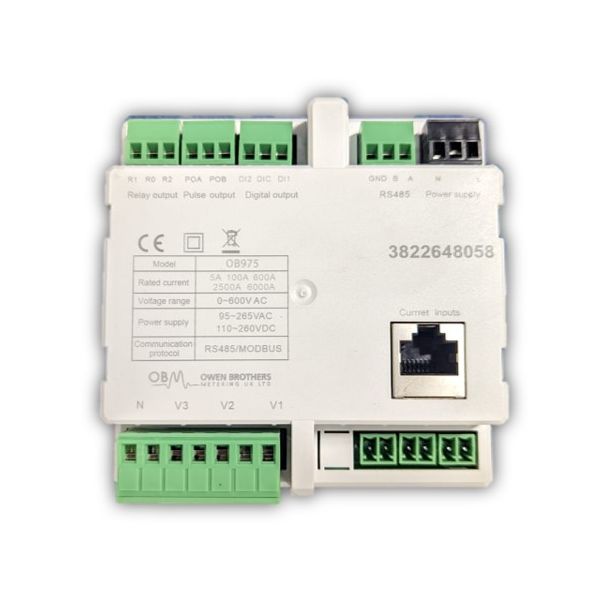

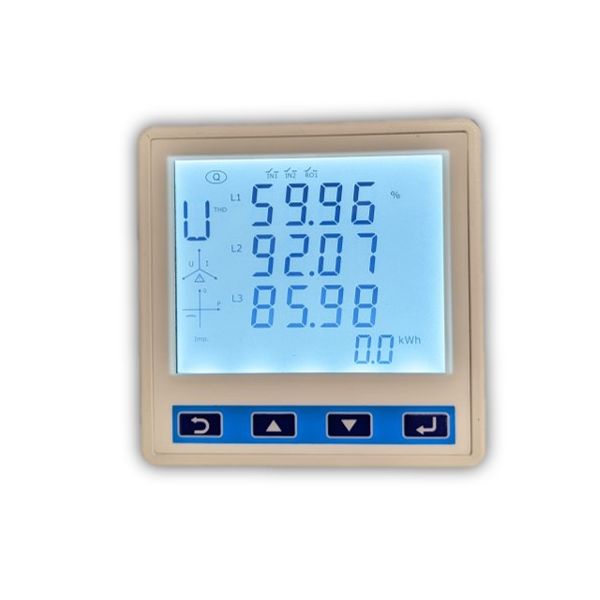

OB975 Panel Mounted Rogowski Power Quality Analyser

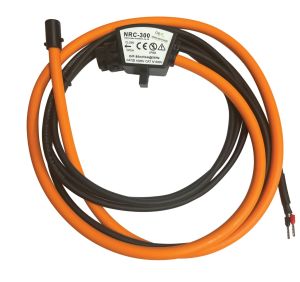

Complete with 600amp Flexible Rogowski Coils for quick and easy installation

Voltage

• Range 0~600VAC Phase to Phase Voltage
• Maximum range 720VAC Phase to Phase Voltage
• Digital Signal
• Energy pulse output Active energy pulse output, optocoupler isolation (5kvrms)
• Relay output One way electromagnetic relay output, including normally open and normally closed contacts, contact capacity:
  3A 30V DC, 3A 250V AC
• Digital input 2-way dry contact input, optocoupler isolation (5kvrms)

Communication

• RS485 communication - One way RS485 communication interface
• Interface type: two wire half duplex
• Communication baudrate: 2400bps ~ 19200bps
• Protocol: Modbus RTU

Power supply

• Power Supply 95~265VAC/110~260VDC, 45~60Hz

• Maximum power consumption 3.5VA
