OB434 CT Three Phase Meter in IP66 Enclosure

OB434 CT Three Phase Meter in IP66 Enclosure

OB434 CT Three Phase Meter in IP66 Enclosure

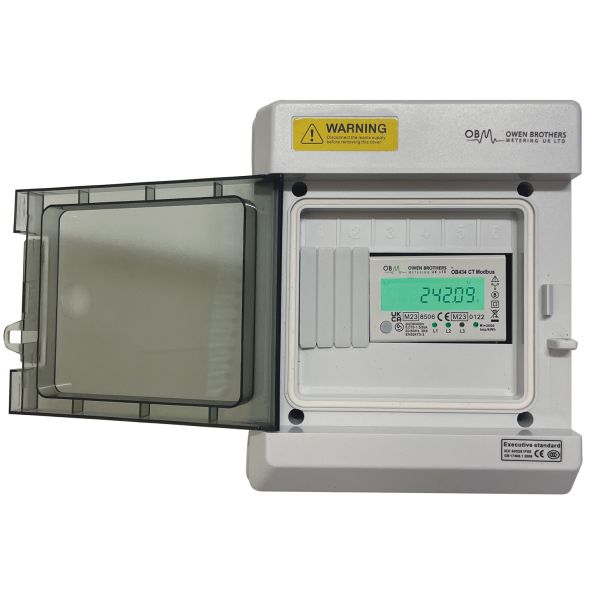

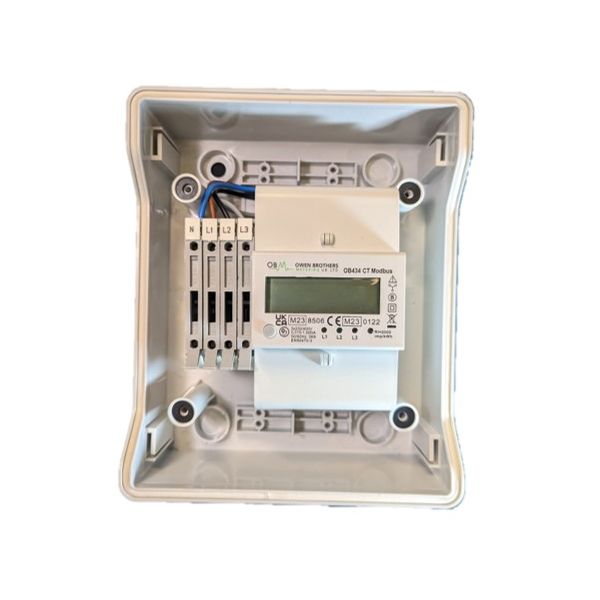

OB434 3 phase CT operated meter pre wired with fuses in a 6 way IP66 polycarbonate enclosure with a frosted window, clipped onto fitted din rail with blanking plates. Current transformers to suit available.



Certification: MID Certified

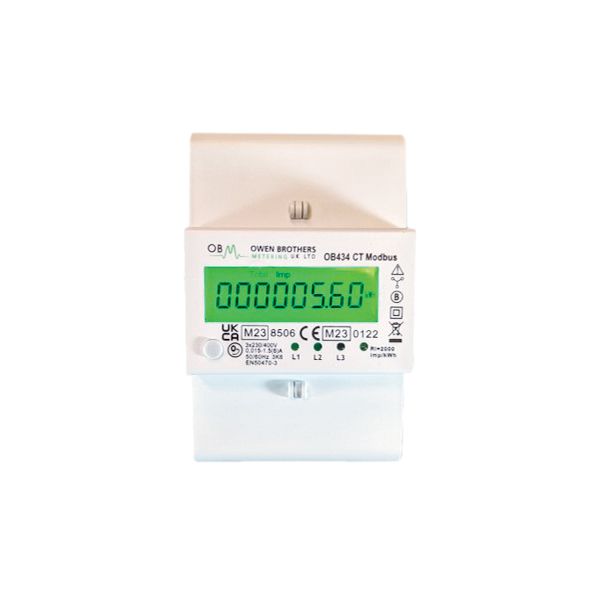

Type: Three-phase CT operated, kWh pass through meter, active energy, phase voltage indicators, isolated pulsed output, memory back up when power off

Housing: 4 DIN Module case

Usage: Suitable for industrial/commercial sub-billing, FIT/ROC, renewables, solar PV

Current Rating: 100A + (programmable CT ratio)

Voltage: 230V

Pulse Rate: 400/1000 imp/kWh

Output: Isolated pulsed output

Display: LCD Backlit display, total KWh

Dimensions: 16 (W) x 20 (H) x 10 (D) cm





£102.60
Availability: In stock
SKU
OB434-CT-IP66
OB434 CT Three Phase Meter in IP66 Enclosure is available to buy in increments of 1
More Information
Model OB434 CT Three Phase Meter in IP66 Enclosure
Length 100
Height 100
Bredth 100
HS Tariff Code HS
Packing Buffer (in percentage) 1
Packing Type Individual
