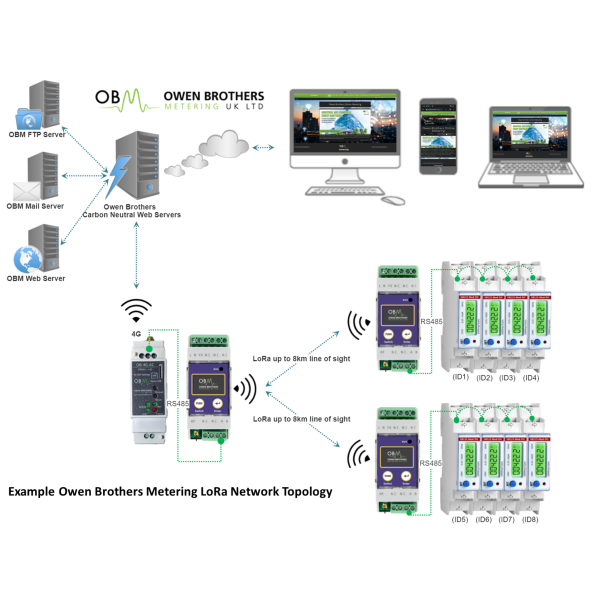

Allows you to connect RS485 Modbus RTU devices over distances where it is impractical or impossible to run data cables. The transceiver modules can connect to multiple devices and multiple transceiver modules.
AVAILABLE SUPPORTED PROTOCOLS:
LoRa-PMAC: Private radio-based MAC protocol, requires OBM-LoRa-223 configuration software
and Dongle to setup.LoRa-Radio: No software or PC connection required - the mode used in
most installations
Operating Voltage: AC85~420Vac
Static Power: 0.5W @ 220Vac
Working Frequency: 50Hz ± 10Hz
Wired Communication Port: RS-485/Modby-RTU
Wireless Standard: LoRa WAN, LoRa Radio, LoRa PMAC
Frequency Range: 428~438MHz
Transmit Power: +19dBm Max
Receive Sensitivity: SF10: ≤-132dBM
Operating Temperature: -25OC : +70OC
Storage Temperature: -45OC : +85OC
Mechanical Dimensions: 90.5 x 35.6 x 60.7mm (LxWxH)
SOLD INDIVIDUALLY

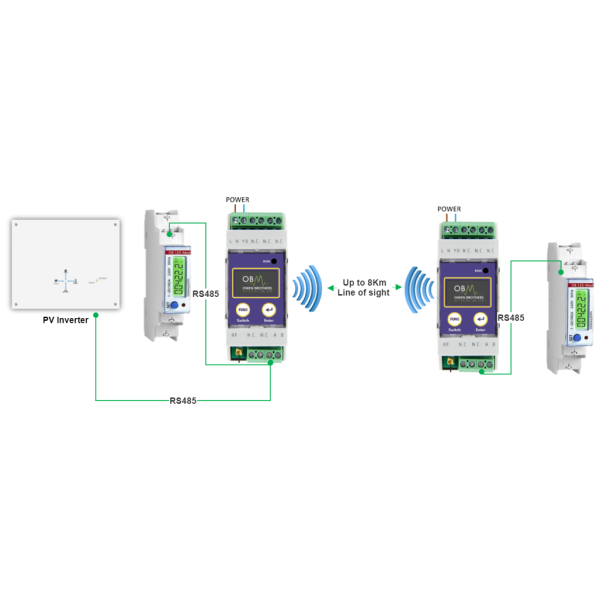

Please note 2 units are usually required per installation (one transmitter, one receiver)
| Model | OBM-LoRa-223 |
|---|---|
| Length | 9.05 |
| Height | 6.07 |
| Bredth | 3.56 |
| HS Tariff Code | 9030310000 |
| Packing Buffer (in percentage) | 20 |
| Packing Type | Shared |
