OB737CT Three Phase Online Monitoring Kit

OB737CT Three Phase Online Monitoring Kit

OB737CT Three Phase Online Monitoring Kit



Our online three phase monitoring kits are designed as a comprehensive metering solution with various components for measuring electrical parameters, communicating data, and providing online monitoring capabilities. The kits are fully pre wired, with meters, fuses and current transformers/coils to suit and ready for installation, simply provide power/voltage reference.


Click on the icon for further Remote Monitoring details

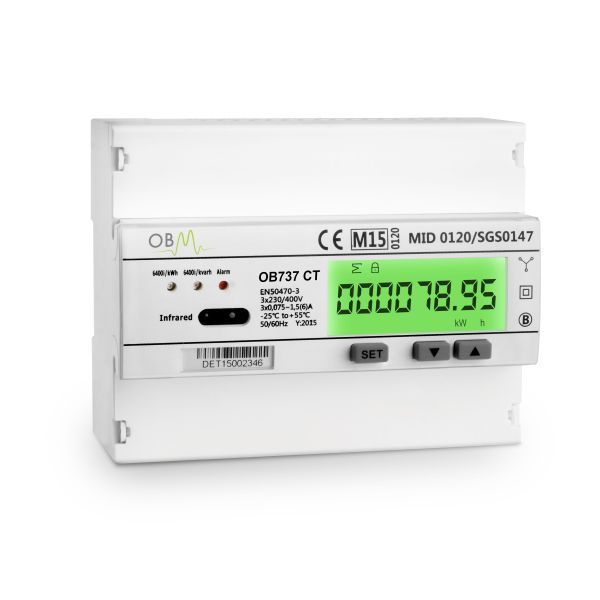

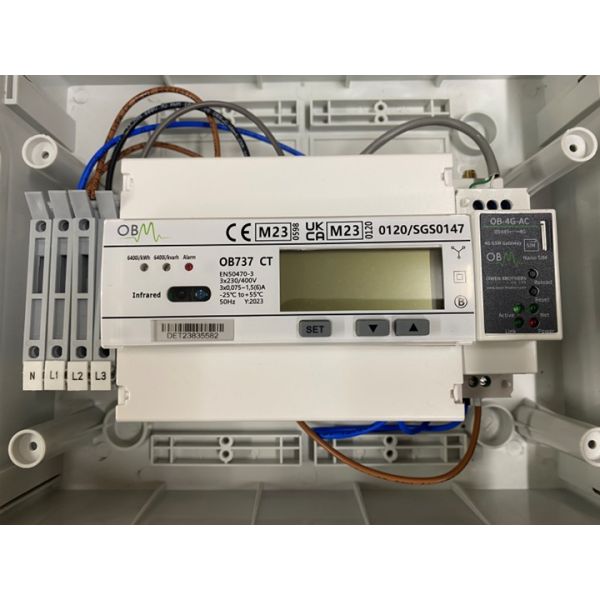

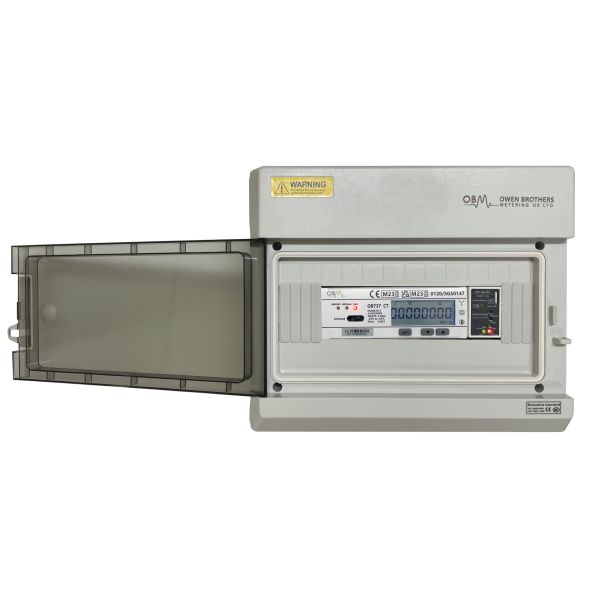

OB737CT MID meter, pre-wired with fuses in a 12 way IP66 polycarbonate enclosure, complete with G6 modem, SIM and a set of 3 split core current transformers to suit - includes user account set up on the obmeters.co.uk platform for accessing the metering data.



Certification: MID Certified

Type: Three-phase CT operated, high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, industrial control, AMR compatible. Memory Backup. Meter displays if power fails, TOU, up to four tariffs, summertime switch.

Housing: 7 DIN Module case

Usage: Suitable for industrial/commercial sub-billing, FIT/ROC, renewables, solar PV

Current Rating: 100A + programmable CT ratio

Voltage: 230V AC 50/60Hz

Pulse Rate: 320 imp/kWh @ 100/5

Output: Isolated pulsed output and IR

Display: LCD Backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh

Enclosure Dimensions: 28 (W) x 23 (H) x 12 (D) cm



Any number of meter combinations are available (up to 32 per modem*) – please contact us for further details on our bespoke remote monitoring kits.

£400.00
Availability: In stock
SKU
OB737CT-IP66-G6
OB737CT Three Phase Online Monitoring Kit is available to buy in increments of 1
More Information
ModelOB737CT Three Phase Online Monitoring Kit
Length37
Height31
Bredth20
HS Tariff Code9030310000
Packing Buffer (in percentage)10
Packing TypeIndividual
