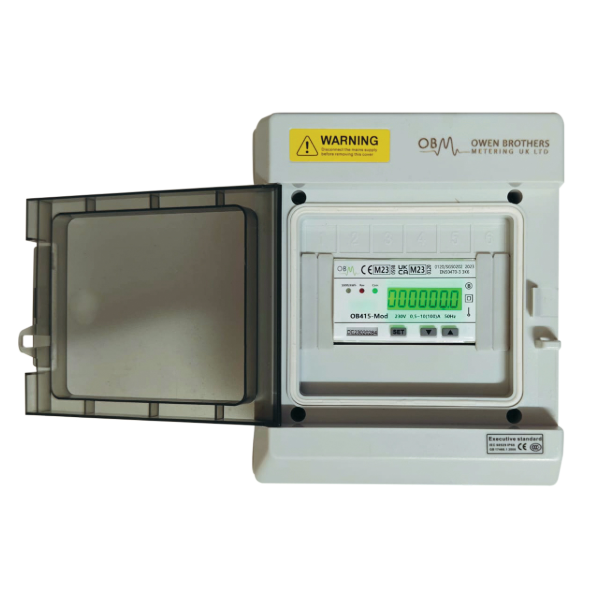

100A, MID certified single phase direct connected meter in an IP66 6 way polycarbonate enclosure with a clear window, clipped onto fitted din rail with blanking plates.
Certification: MID Certified
Type: Single-phase, high-precision, kWh meter. Class .1 Accuracy with RS485 MODBUS RTU
Housing: 4 DIN Module case
Usage: Suitable for sub-billing
Current Rating: 100A Direct connected
Voltage: 230/240V ± 20%
Pulse Rate: 1600 imp/kWh
Output: Isolated pulsed output
Display: LCD Backlit display
Max Cable Size: 25mm
Dimensions: 16 (W) x 20 (H) x 10 (D) cm
| Model | OB415-MOD 100 AMP Single Phase Electric Meter with RS485 Modbus RTU in IP66 Enclosure |
|---|---|
| Length | 15 |
| Height | 15 |
| Bredth | 15 |
| HS Tariff Code | HS903031000 |
