Certification: MID Certified
Type: Three-phase CT operated, high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, industrial control, AMR compatible. Memory Backup. Meter displays if power fails, TOU, up to four tariffs, summertime switch.
Housing: 7 DIN Module case
Usage: Suitable for industrial/commercial sub-billing, FIT/ROC, renewables, solar PV
Current Rating: 100A + programmable CT ratio
Voltage: 230V AC 50/60Hz
Pulse Rate: 320 imp/kWh @ 100/5
Output: Isolated pulsed output and IR
Display: LCD Backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh

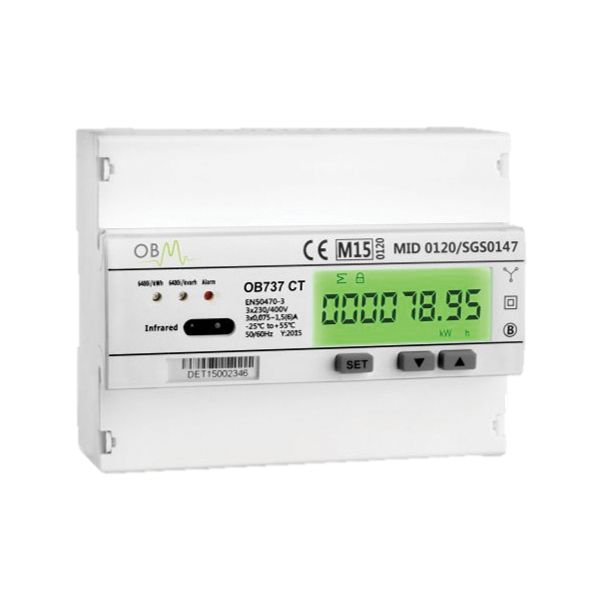

| Model | OB737CT Mid Approved, DIN Rail, CT Operated, RS485, Bi-Directional DIGITAL METER |
|---|---|
| Length | 20 |
| Height | 20 |
| Bredth | 15 |
| HS Tariff Code | HS9030310000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Individual |
