OB115-MOD Single Phase Online Monitoring Kit

Our online single phase monitoring kits are designed as a comprehensive metering solution with various components for measuring electrical parameters, communicating data, and providing online monitoring capabilities. The kits are fully pre wired and ready for installation, simply provide power.

Click on the icon for further Remote Monitoring details

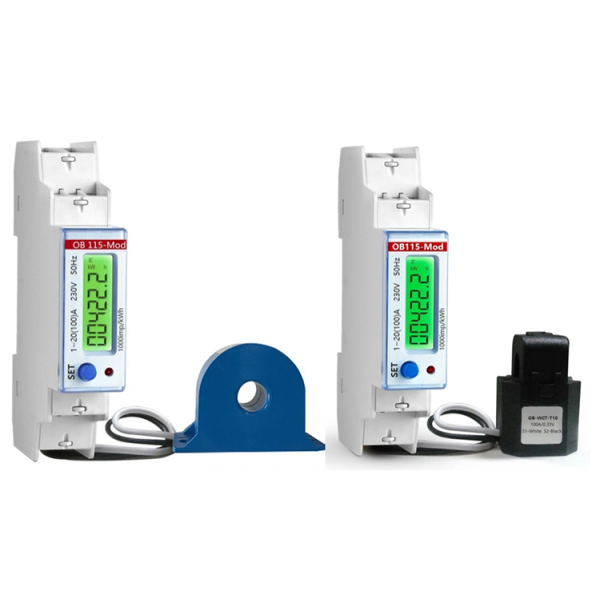

OB115-MOD MID meter, with split core millivolt current transformer, pre-wired with fuses in a 6 way IP66 polycarbonate enclosure, complete with G6 modem, SIM includes user account setup on the obmeters.co.uk platform for accessing the metering data.

Certification: MID Certified

Type: Single-phase high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/ export, instant volt, amp, power factor, frequency, reactive power, apparent power, industrial control, AMR compatible

Housing: 1 DIN Module case

Usage: Suitable for sub-billing, renewables, solar PV

Current Rating: 330 mV as input 100A CT operated (split or solid)

Voltage: 230V AC 50/60Hz

Pulse Rate: 1000 imp/kWh (2nd pulse rate configurable)

Output: Isolated pulsed output

Display: LCD backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh

Enclosure Dimensions: 16 (W) x 20 (H) x 10 (D) cm

Any number of meter combinations are available (up to 32 per modem*) – please contact us for further details on our bespoke remote monitoring kits.
