OB4373 Rogowski Three Phase Online Monitoring Kit with 12 Months Remote Monitoring Access

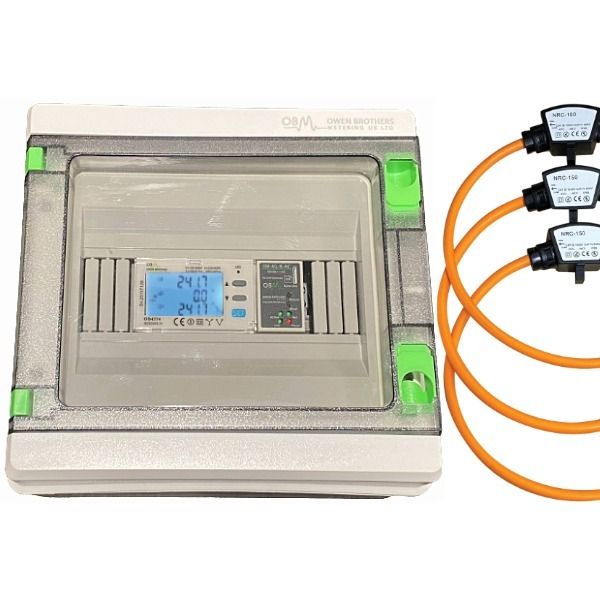

OB4373 three phase high-precision kWh meter complete with a set of calibrated Rogowski coils, 5m cable and a 5V DIN rail power supply, pre-wired with fuses, G6 modem, SIM, high gain magnetic ariel in a 12 way IP66 polycarbonate enclosure.

Includes user account set up on the online platform for accessing the metering data for 12 months.

Features: Firmware upgradable, max/min/average demand, programmable digital output for loadshedding, export limitation, reverse relay, transformer metering, compatible with LV,MV, HV applications, harmonic analysis, phase sequence indication, allows CT/PT configuration, 5v DC output for communication equipment, dual source inputs for utility/generator measurement Class 1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, programmable load survey/profile intervals, voltage asymmetry, true RMS measurements. Over 300+ parameters measured.

Enclosure Dimensions: 28 (W) x 23 (H) x 12 (D) cm

Our Rogowski coil range can be used in similar circumstances to current transformers - in many instances they have added advantages including:

• Wide dynamic range
• High lineraity
• Very useful with large size cables or awkward shaped conductors or in places with limited access
• No danger from open-circuited secondaries
• No damage by large overloads
• Non-instrisive - do not draw power from the main circuit carrying the current to be measured
• Light weight

Any number of meter combinations are available (up to 32 per modem*) – please contact us for further details on our bespoke remote monitoring kits.
