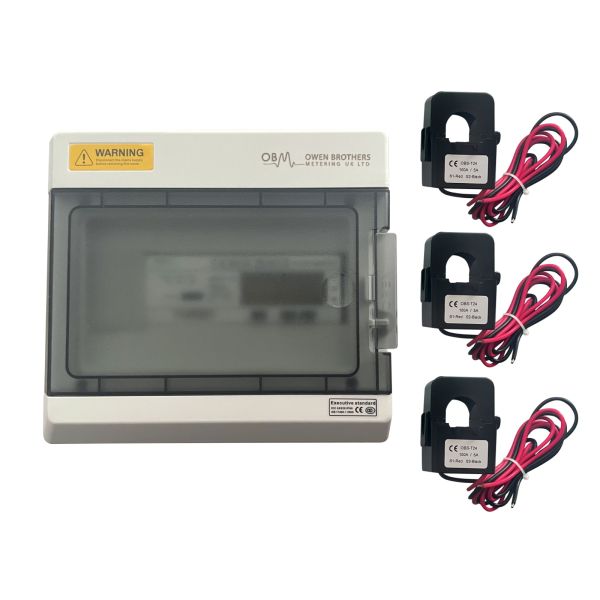

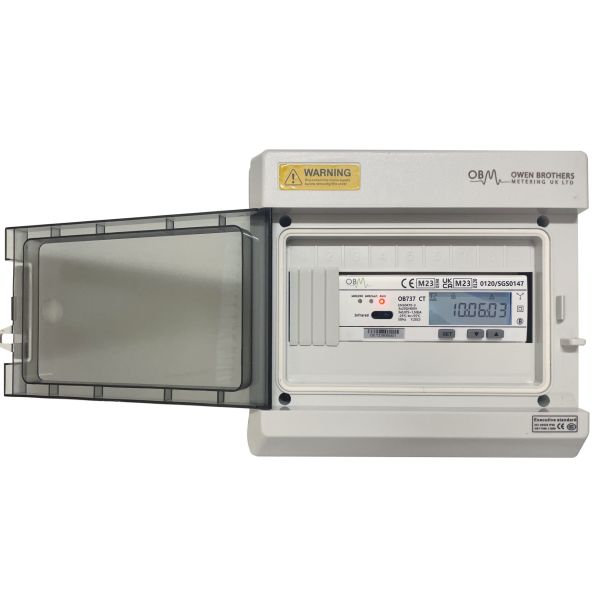

OB737CT meters, pre wired with fuses in a 9 way IP66 polycarbonate enclosure with a frosted window, clipped onto fitted din rail with blanking plates. Current transformers to suit.
Certification: MID Certified

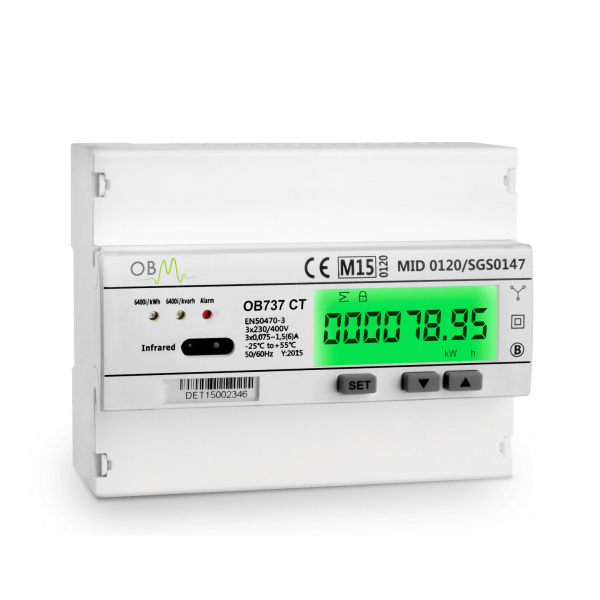

Type: Three-phase CT operated, high-precision kWh meter. Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, industrial control, AMR compatible. Memory Backup. Meter displays if power fails, TOU, up to four tariffs, summertime switch
Housing: 7 DIN module case
Usage: Suitable for industrial/commercial sub-billing, FIT/ROC, renewables, solar PV
Current Rating: 100A + programmable CT ratio
Voltage: 230V AC 50/60Hz
Pulse Rate: 320 imp/kWh @ 100/5
Output: Isolated pulsed output and IR
Display: LCD backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh
Dimensions: 22 (W) x 20 (H) x 10 (D) cm
| Model | OB737-CT Three Phase Full Metering Kit |
|---|---|
| Length | 35 |
| Height | 25 |
| Bredth | 20 |
| HS Tariff Code | 9030310000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Individual |
