OB4373 Rogowski Three Phase Online Monitoring Kit with 12 Months Remote Monitoring Access

Our online three phase monitoring kits are designed as a comprehensive metering solution with various components for measuring electrical parameters, communicating data, and providing online monitoring capabilities.

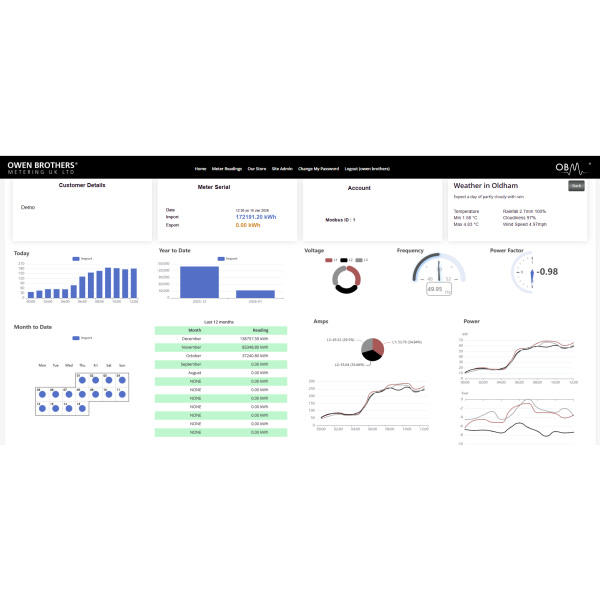

OB4373 three phase high-precision kWh RS485 meter complete with a set of calibrated Rogowski coils, 5m cable and a 5V DIN rail power supply. Pre-wired with fuses, G6 modem, SIM, high gain magnetic aerial in a 12 way IP66 polycarbonate enclosure. Includes user account set up on the online platform for accessing the metering data for 12 months.

Features: Firmware upgradable, max/min/average demand, programmable digital output for loadshedding, export limitation, reverse relay, transformer metering, compatible with LV,MV, HV applications, harmonic analysis, phase sequence indication, allows CT/PT configuration, 5v DC output for communication equipment, dual source inputs for utility/generator measurement Class 1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, programmable load survey/profile intervals, voltage asymmetry, true RMS measurements. Over 300+ parameters measured.

Housing: 4 DIN Module case

Current Rating: 333mV AC

Voltage: 208V up to 415V

Pulse Rate: 20 imp/kwh

Output: SO pulsed output

Display: LCD Backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total kWh

Enclosure Dimensions: 28 (W) x 23 (H) x 12 (D) cm

Any number of meter combinations are available (up to 32 per modem) – please contact us for further details on our bespoke remote monitoring kits
