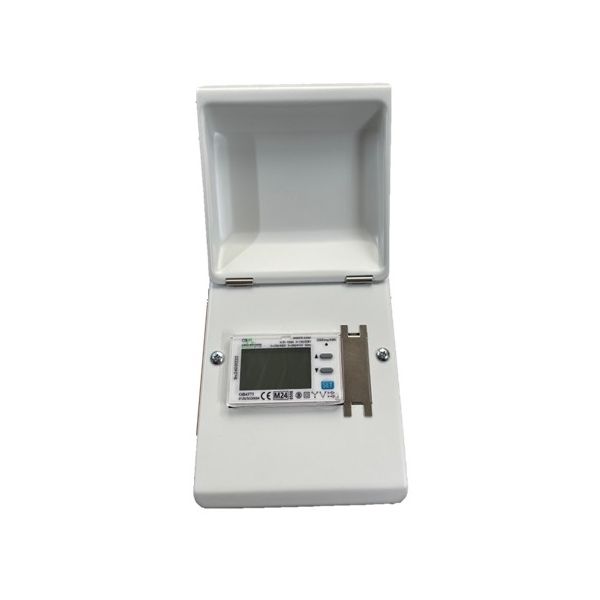

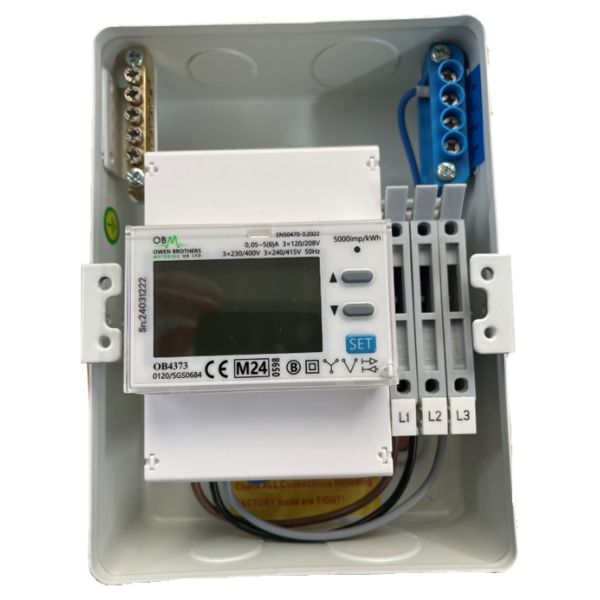

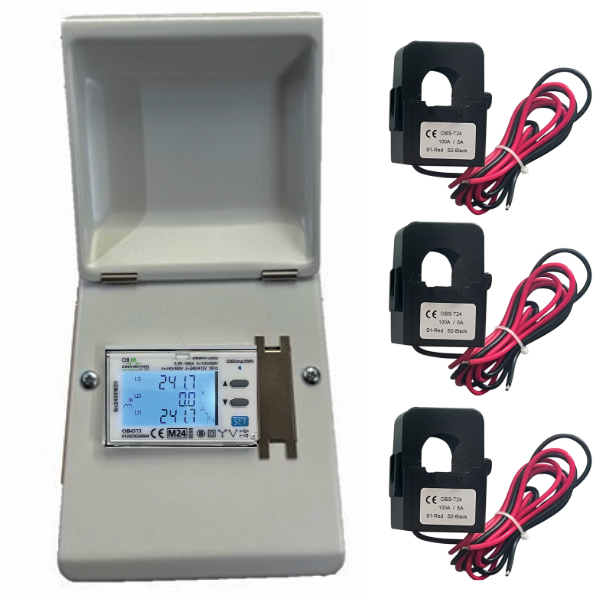

OB4373 three phase CT operated meter pre-wired with fuses in a fully enclosed metal construction body with drop down metal lid, complete with din rail and earth terminal bar. 25 & 32mm circular cable entry knock-outs on the top and bottom.
Ideal for installing in compact spaces.
Certification: MID certified

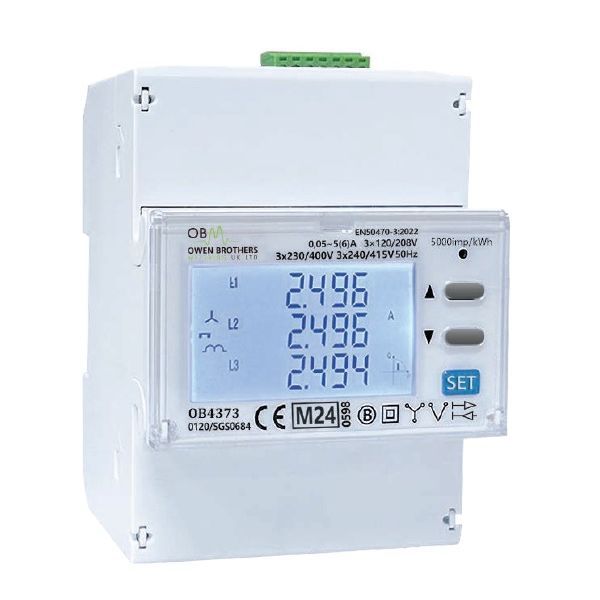

Type: Three-phase CT operated, high-precision kWh meter, firmware upgradable, max/min/average demand, programmable digital output for loadshedding, export limitation, reverse relay, transformer metering, compatible with LV,MV, HV applications, harmonic analysis, phase sequence indication, allows CT/PT configuration, 5v DC output for communication equipment, dual source inputs for utility/generator measurement Class .1 accuracy with RS485 MODBUS RTU: baud rate, modbus ID, parity, Bi-directional, import/export, instant volt, amp, power factor, frequency, active power, reactive power, apparent power, programmable load survey/profile intervals, voltage asymmetry, true RMS measurements. Over 300+ parameters measured
Housing: 4 DIN Module case
Usage: Suitable for industrial/commercial sub-billing, FIT/ROC, renewables, solar PV
Current Rating: 100A + programmable CT ratio
Voltage: 230V AC 50/60Hz
Pulse Rate: 320 imp/kWh @ 100/5
Output: SO Isolated pulsed output
Display: LCD Backlit display, voltage, ampere, kW, PF, Hz, + kWh, -kWh, total KWh
Enclosure Dimensions: 11 (W) x 17.5 (H) x 9 (D) cm
| Model | OB4373CT Three Phase Multi-Function MID Meter in IP40 Steel Enclosure |
|---|---|
| Length | 18 |
| Height | 20 |
| Bredth | 20 |
| HS Tariff Code | HS9030310000 |
| Packing Buffer (in percentage) | 10 |
| Packing Type | Individual |
